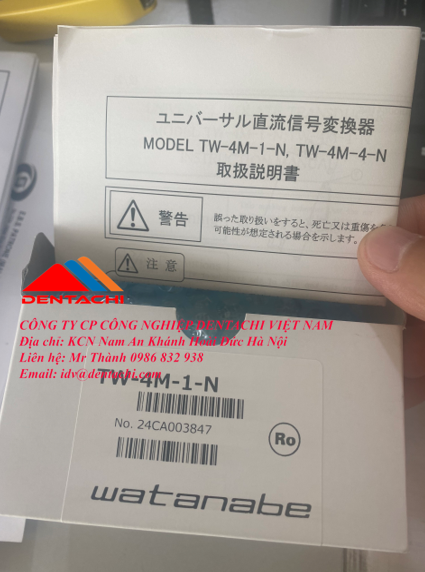

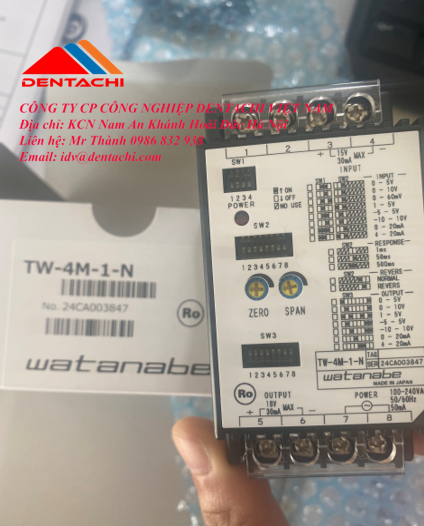

TW-4M-1-N ：Universal isolator

Isolator which is possible to change input/output range and response time by DIP switches

・Space-saving and weight-saving by unifying converter and terminal block
・Unbelievable low price

Input	DC voltage/DC current
Output	DC voltage/DC current
Power	AC100〜240V DC24V
Accuracy	±0.1%fs
Response time(0→90%)	1ms/50ms/500ms (DIP switch settings)
Operating temperature/humidity
Dielectric strength	AC2000V
Weight	Approx.130g
Standards & Approvals	※Only DC power EN61326-1 EMIclassA EN IEC 63000
Dimensions(HWD)	98×48×41mm
Operating temperature/humidity	-5~+50℃　Lower limit 90%RH
