Diginip NIP Sens 23 Roller Adjuster

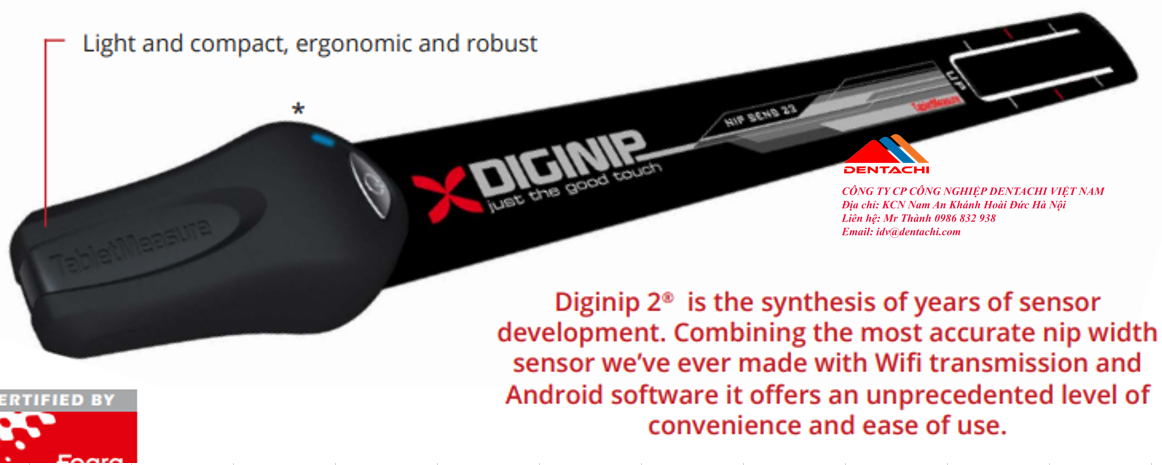

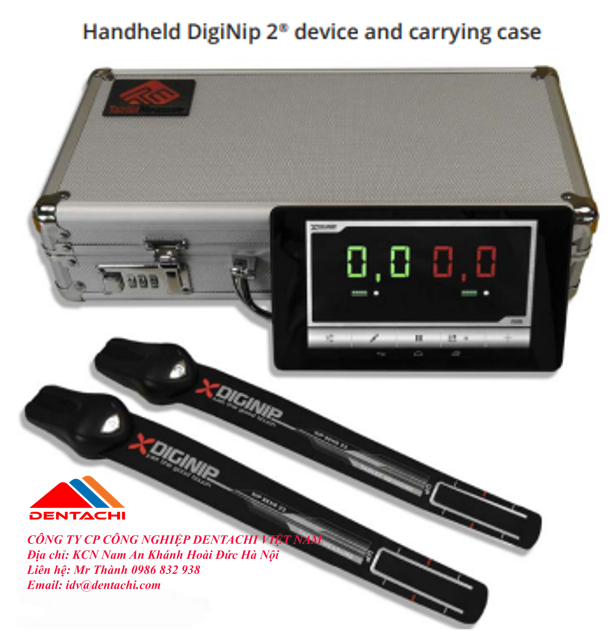

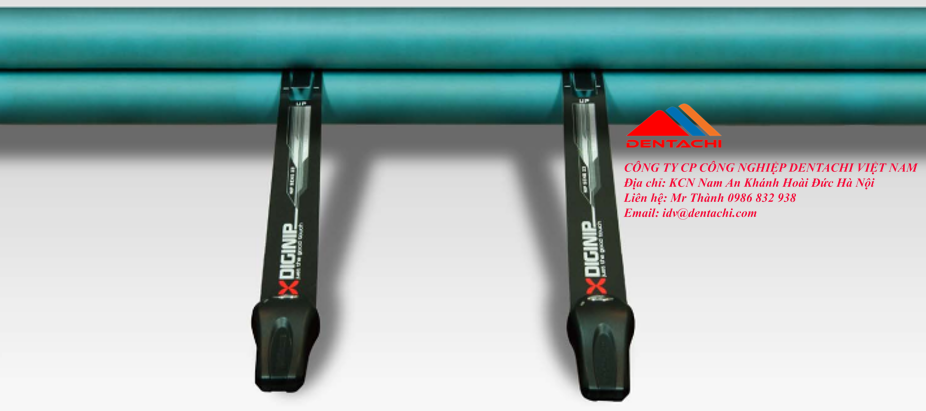

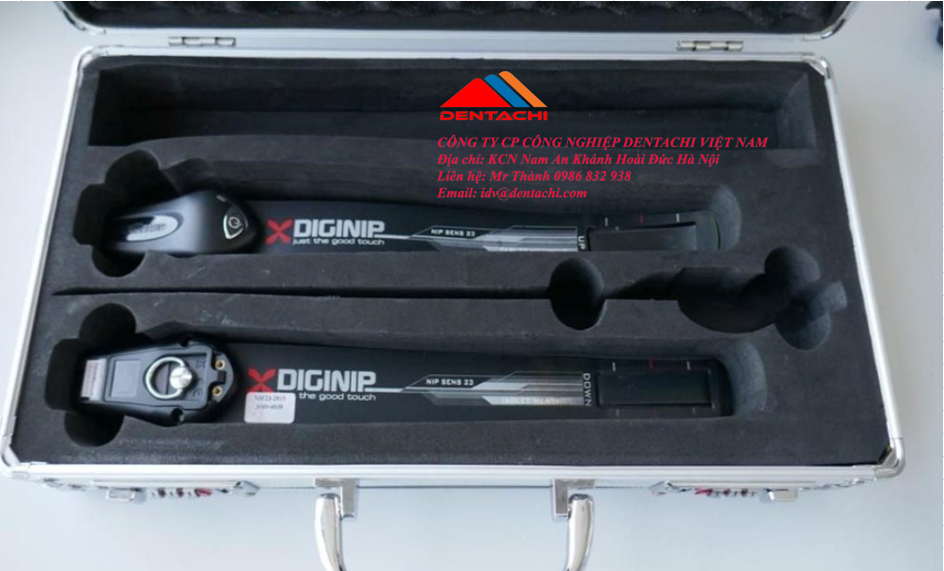

DigiNip 2^® is a powerful system that allows the quick and easy diagnosis of roller conditions - the nip contact point. With minimal investment and no prior experience a user can quickly and accurately record spot nip (contact point between rollers) width at any section of your web or sheetfed process. Diginip's sensing capability is as sensitive as it's case is durable - its ergonomic shell is impact hardened and water resistant.

No more time consuming and inaccurate nip measurements with carbon paper. Now nip readings can be determined instantaneously and adjustments made while the sensor is between your rolls! DigiNip 2^® is also economical; the sensor elements that connect into the DigNip 2^® device are designed to provide hundreds of readings before replacement is necessary.

Specifications
Length (MD) of Sensing Area	1.2 in. (30 mm)
Width (CD) of Sensing Area	0.3 in. (8 mm)
Sensor Thickness	0.07 in. (17 mils)
Battery	CR2032
Battery Life	2 years at 8 hrs. per week
Weight	1.8 oz. (50 grams)
Min./Max. Temperature	14°F to 140°F (-10°C to 60°C)
Min./Max. Nip Width	0.04 - 1.2 in. (1 - 30 mm)
Accuracy	±10%
Wireless Protocol	Bluetooth
Wireless Range	30 feet
Operating System	iOS and Android
Tablet	Not included

Common misspellings of DigiNip^® include digi-nip, digi nip, digi_nip, dige nip, digit nip, digenip, degi-nip, deginip, degi nip, digi nip sensor, diginip sensors, digi-nip sensors, digi nip sensors, diginip sensor and digi-nip sensor.
