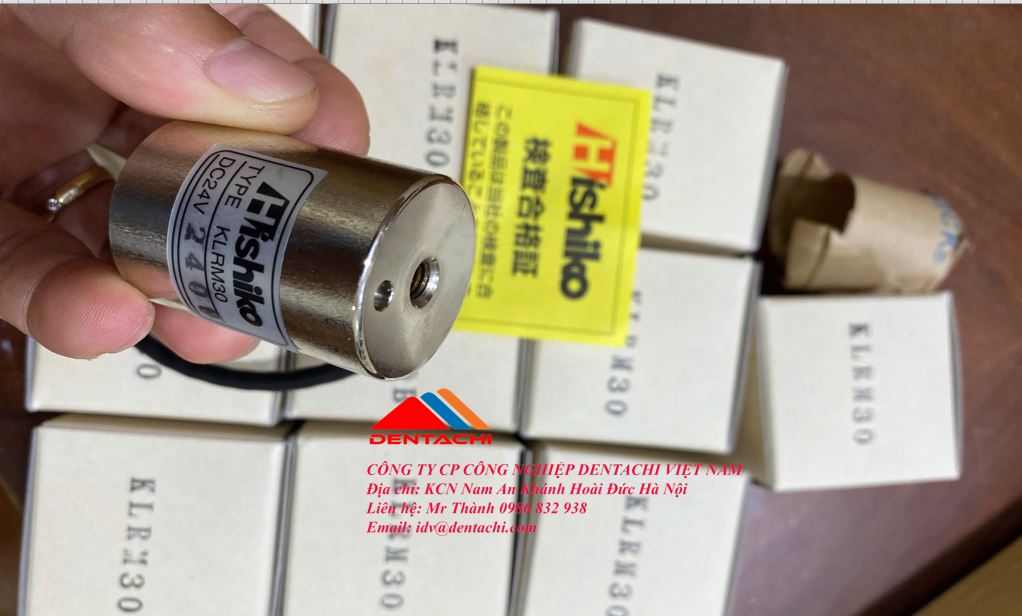

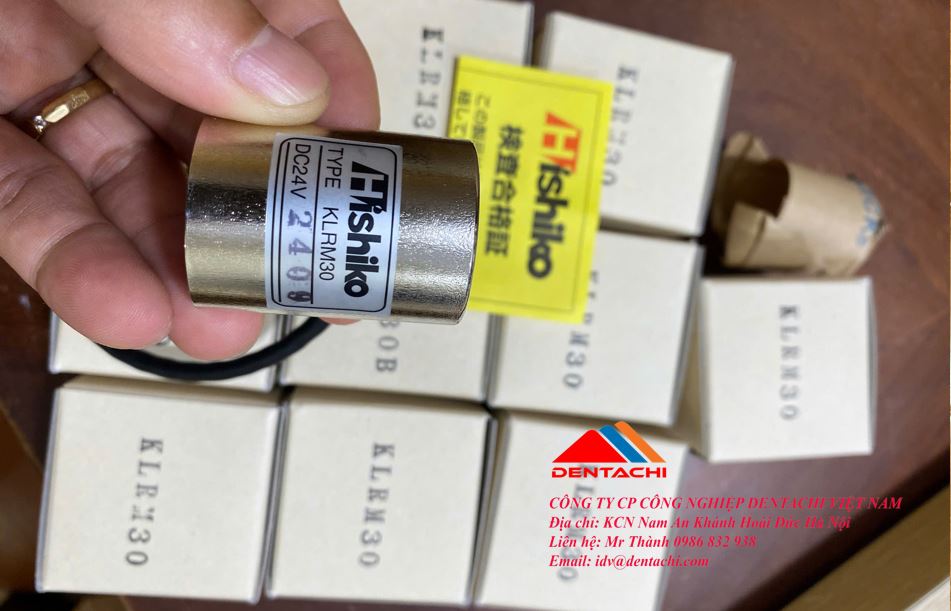

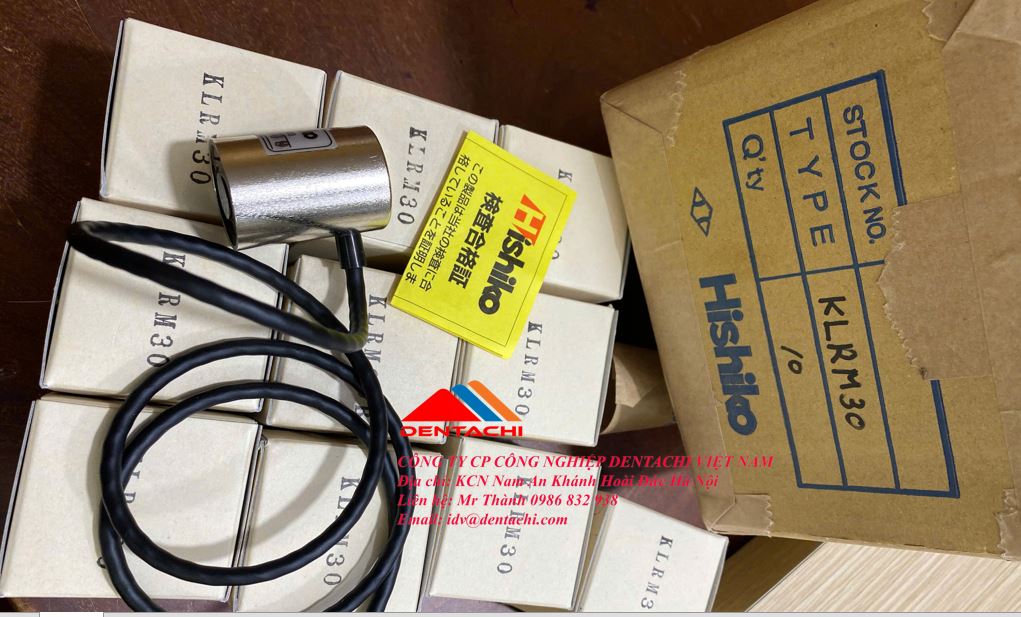

KLRM 30 Round Electromagnetic Holder Hishiko KLRM30
Model: KLRM Series
Applications
- Install KLRM as a gripper in an industrial robot to transport small processed products.
Features
- Compact and easy to use.
- You can switch it ON and OFF.
- KLRM requires rectifier as a power unit.
※We sell the rectifier separately.
Recommended rectifier is KS24 and KS80 series
Specifications
Stock No. |
Model |
Dimensions (mm) |
Tapped Hole |
Stopper Hole |
Voltage |
Current(A) |
Max. Holding Power |
Weight(kg) |
island |
H |
A |
S961102 |
KLRM20 |
20 |
28 |
None |
M4 depth8 |
– |
24 |
0.06 |
28N (2.8kgf) |
0.07 |
S961103 |
KLRM30 |
30 |
40 |
10 |
M6 depth12 |
4depth3 |
0.17 |
180N (18kgf) |
0.2 |
S961104 |
KLRM40 |
40 |
15 |
0.24 |
300N (30kgf) |
0.35 |
S961105 |
KLRM50 |
50 |
50 |
18 |
M8 depth15 |
5depth4 |
90 |
0.11 |
600N (60kgf) |
0.7 |
S961106 |
KLRM60 |
60 |
60 |
20 |
M10 depth20 |
0.2 |
1200N (120kgf) |
1.2 |
S961107 |
KLRM80 |
80 |
6depth6 |
0.29 |
2400N (240kgf) |
2.1 |
S961108 |
KLRM90 |
90 |
M12 depth20 |
0.35 |
3300N (330kgf) |
2.7 |
Controller For Electromagnetic Holder HCC024.5AE
Application
- You use HCC024.5AE as a control unit for the electromagnetic holder KLRM series.
Feature
- We have added a neutralization function.
- Neutralization function helps release workpiece with strong residual magnetism.
- Output voltage is adjustable. You can control it using the dial on the front panel.
Stock No. |
Model |
Dimensions (mm) |
Input |
Output |
Current |
Neutralization Duration |
Weight (kg) |
Width |
Height |
Depth |
S981248 |
HCC024.5AE |
130 |
225 |
180 |
AC100/AC200V 50/60Hz Single Phase |
DC1 ~ 24V |
5A Max. |
About 0.5 Sec. (Adjustable) |
3.5 |
Rectifier For Electromagnetic Holder KS24/80
Applications
- Used for the power source of KLRM electromagnetic holder.
Features
- KS24 and KS80 series convert inputted alternate current into direct current and then output it.
Stock No. |
Model |
Applicable Product |
Dimensions (mm) |
Input |
Output DC(V) |
Current (A) |
Weight (kg) |
Width |
Height |
Depth |
S980122 |
KS24×3B |
KLRM・KLRM-B・KLRM-S |
200 |
100 |
155 |
Single Phase AC100V |
24 |
3 |
3.5 |
S980102 |
KS80×3 |
KLRM・KLRM-B |
150 |
60 |
100 |
90 |
1 |
