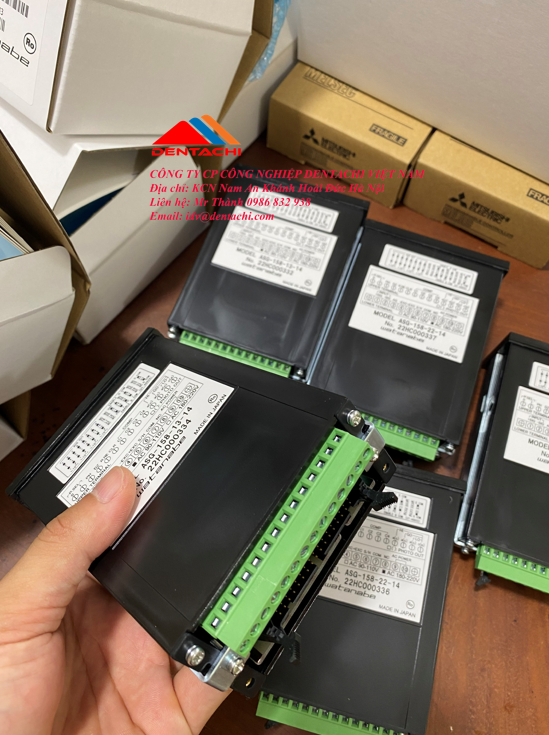

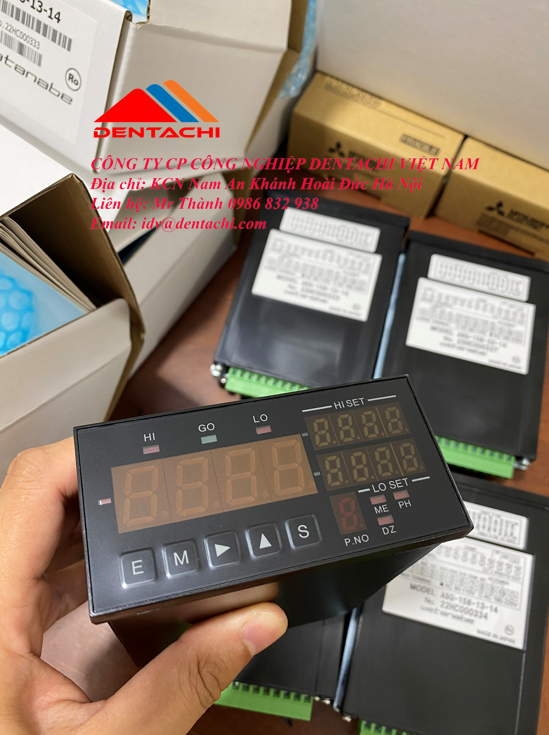

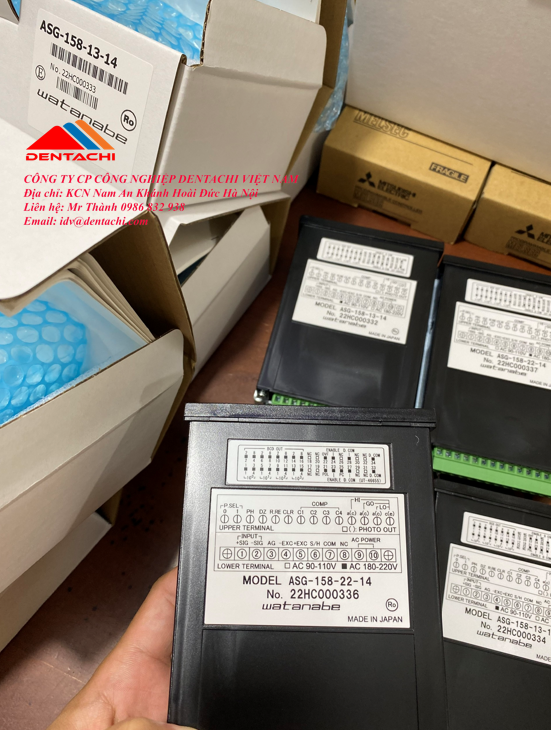

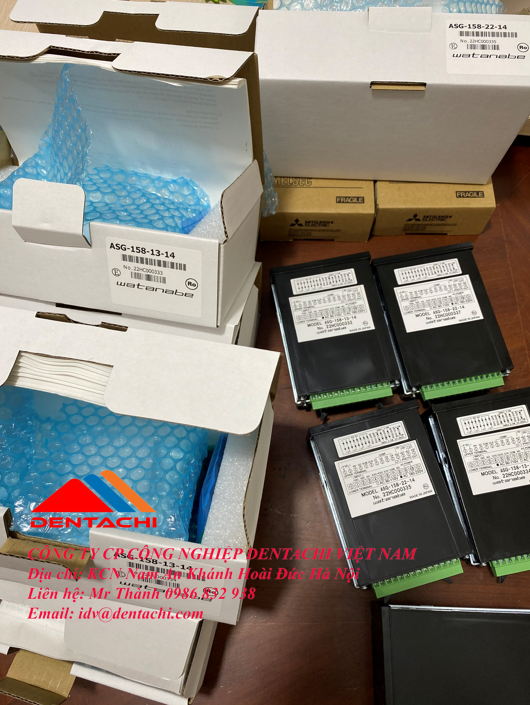

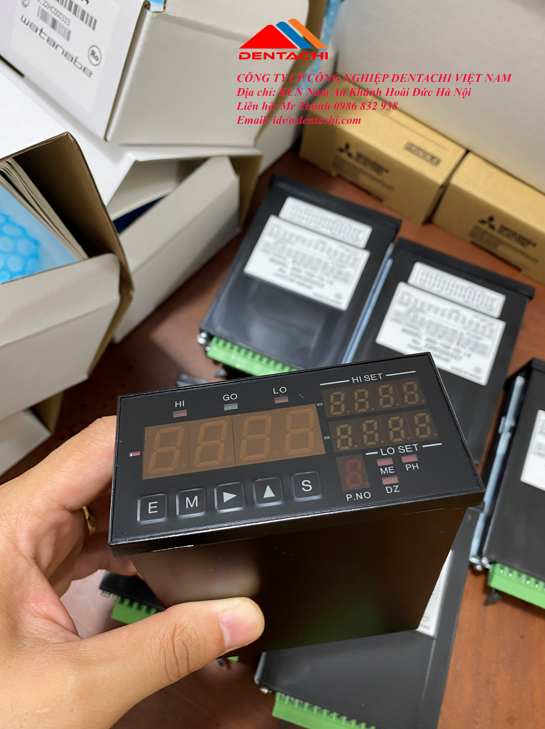

1/8 DIN load cell meter

(48×96mm、Sampling rate of 2000 times per second)

Features

・High-speed sampling rate (2000 times per second)
・With Original function 'SPC' (Section point compare) which is useful in the process of pressure increasing (caulking).

Delivery：1week

Specifications

Input	Load cell
Output	※Specification depends on model codes. ・Analog output×1 DC voltage/DC current ・BCD output×1 TTL Open collector･･･DC30V 10mA ・Communication output×1 RS-232C
Network	RS-232C
Power	AC100V AC200V
Accuracy	±0.15%fs+1digit
Dielectric strength	AC100V power supply:AC1500V AC200V power supply:AC2100V
Weight	Approx.550g
Dimensions(HWD)	48×96×144mm
Operating temperature/humidity	0~+50℃ 35~85%RH
Panel size(HW)	48×96mm
Display digit	4-digit
