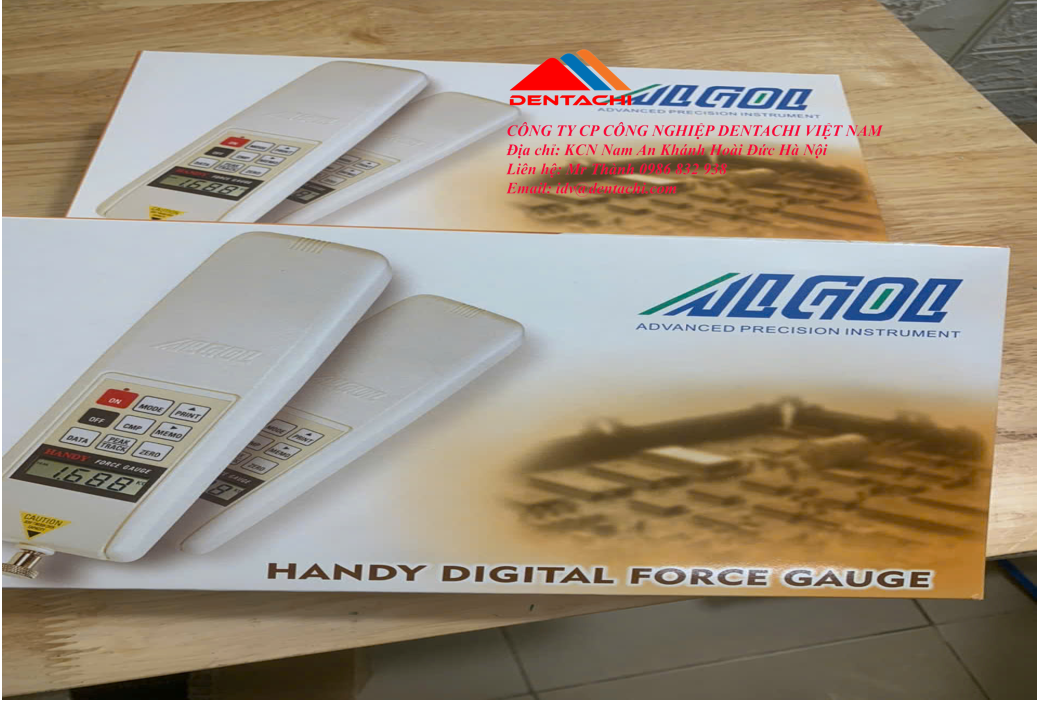

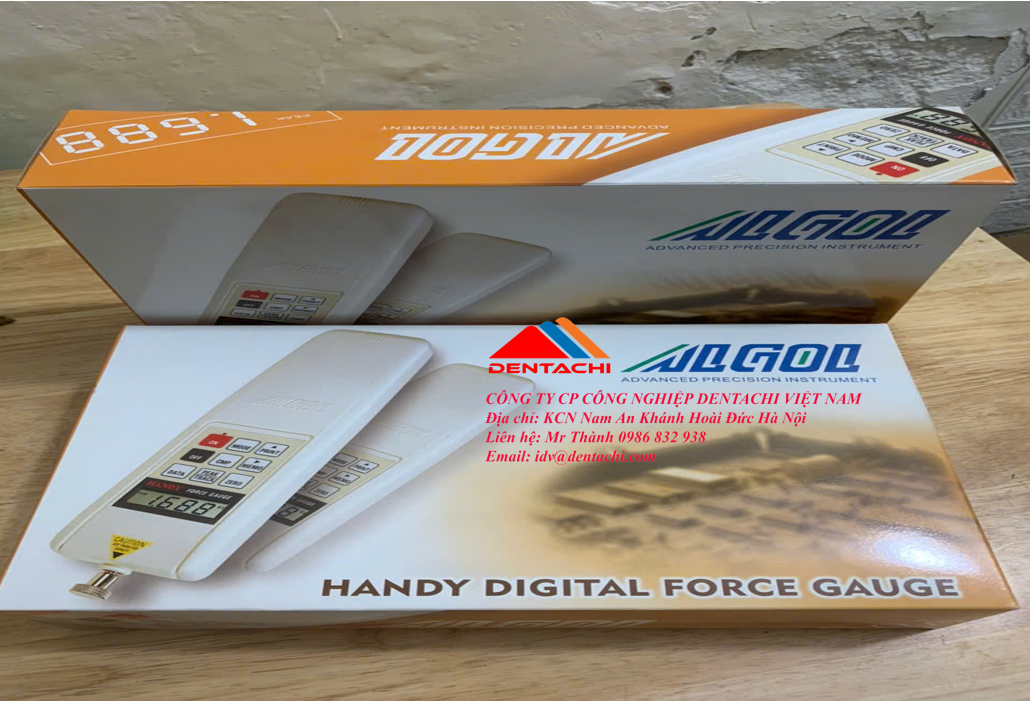

Force Gauge HF-50 ALGOL
Force Gauge HF-50 ALGOL
|
MEASUREMENT UNIT |
N, Kgf, (gf), lbf |
|
ACCURCY |
±0.2% F.S. |
|
REPEATABILITY |
±0.1% F.S. |
|
RESPONSE SPEED |
10~320HZ, 6 Steps |
|
DISPLAY |
4DIGIT LCD DISPLAY |
|
MEASUREMENT |
MAXIMUM VALUE•MOMENT VALUE |
|
SAMPLING |
640 TIMES PER SEC. |
|
ALLOWABLE LOAD |
150% (ALARM BUZZER AT 105%) |
|
A/D CONVERTER |
A/D CONVERTER 16bit |
|
OPERATION TIME |
APPROX.10 HOURS |
|
(FULL CHARGED AT 25℃) |
|
|
CHARGING TIME |
APPROX.6 HOURS |
|
OPERTION TEMPERATURE |
0~+40℃ |
|
POWER |
NI-MH BATTERY, |
|
A/C ADAPTOR FOR CHARGING (110V,220V) |
|
|
WEIGHT |
500g |
|
DIMENSIONS |
230x65x35mm |
|
STANDARD ACCESSARIES |
ATTACHMENT, A/C ADAPTER, CABLES, CASE |
|
OUTPUT |
STANDARDANALOG OUTPUT ±2V F.S. |
|
OPTIONALPRINTER CONNECTING, DIGIMATIC OUTPUT, |
|
|
CENTRONICS INTERFACE. COMPARATOR CONNECTING, |
|
|
RS-232 INTERFACE. |
|
Unit |
Max.Load |
Min.Resolution |
||||||
|
Model |
N |
Kgf |
gf |
lbf |
N |
Kgf |
gf |
lbf |
|
HF-1 |
10 |
1 |
1000 |
2.204 |
0.001 |
0.001 |
0.1 |
0.001 |
|
HF-2 |
20 |
2 |
2000 |
4.408 |
0.01 |
0.001 |
1 |
0.001 |
|
HF-5 |
50 |
5 |
5000 |
11.02 |
0.01 |
0.001 |
1 |
0.01 |
|
HF-10 |
100 |
10 |
10000 |
22.04 |
0.01 |
0.001 |
1 |
0.01 |
|
HF-20 |
200 |
20 |
… |
44.08 |
0.1 |
0.01 |
… |
0.01 |
|
HF-50 |
500 |
50 |
… |
110.2 |
0.1 |
0.01 |
… |
0.1 |
|
HF-100 |
1000 |
100 |
… |
220.4 |
0.1 |
0.01 |
… |
0.1 |
