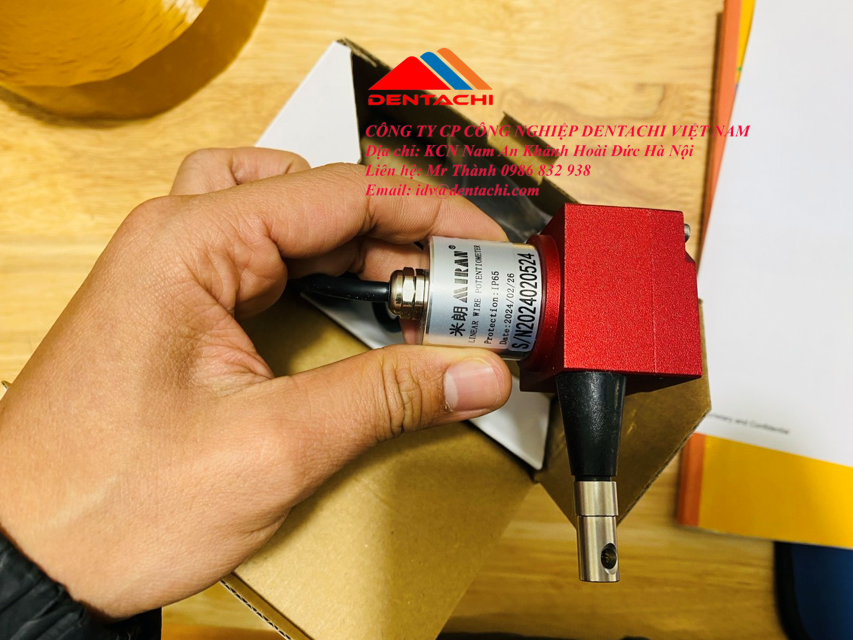

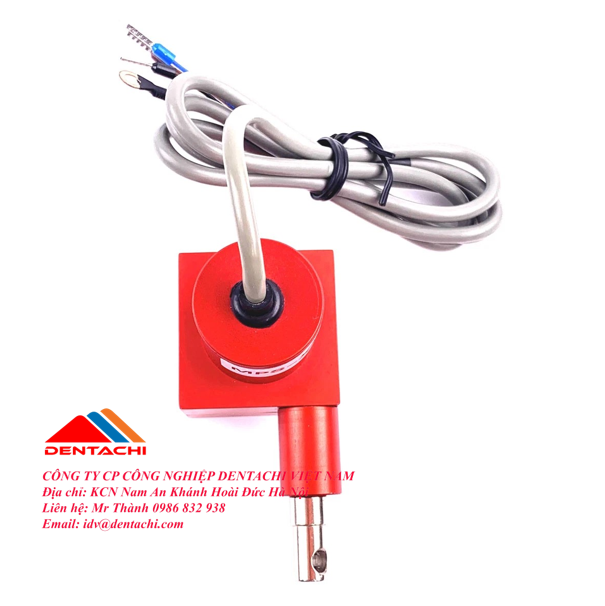

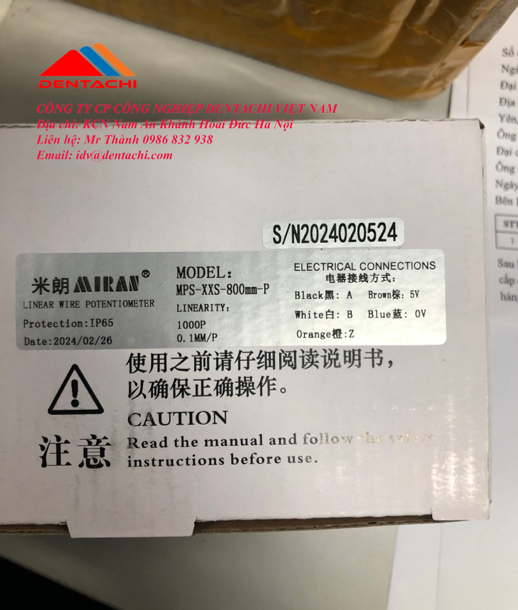

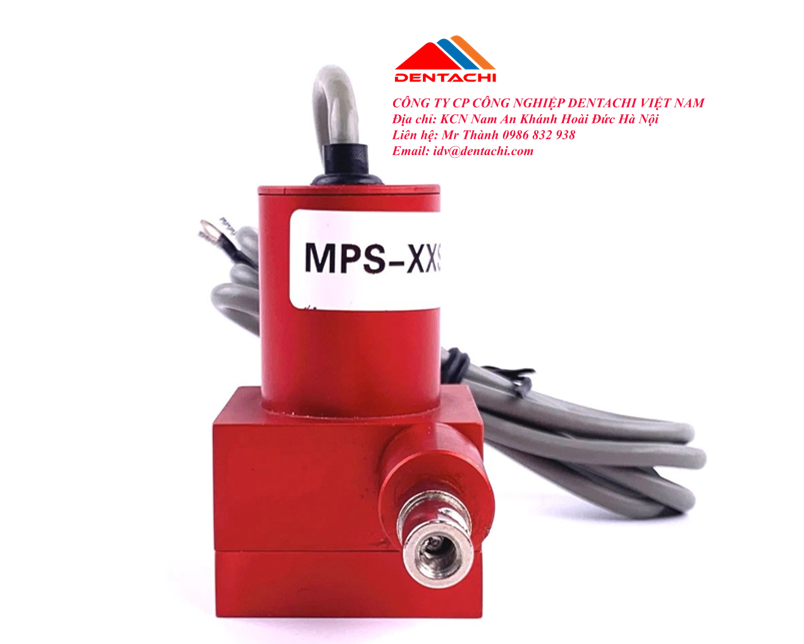

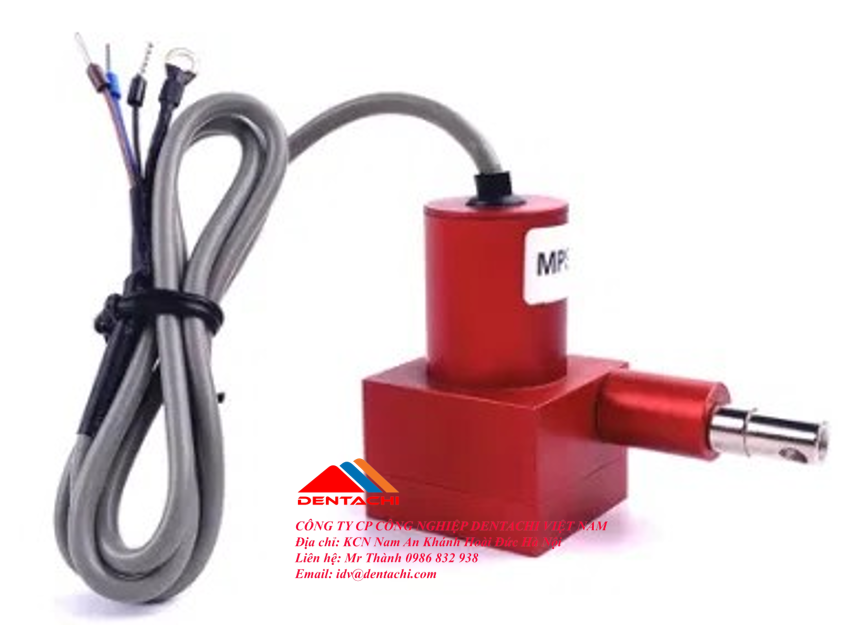

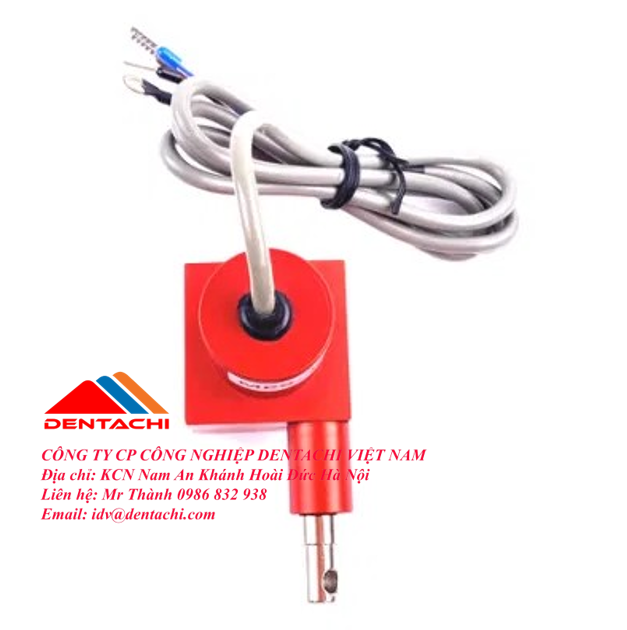

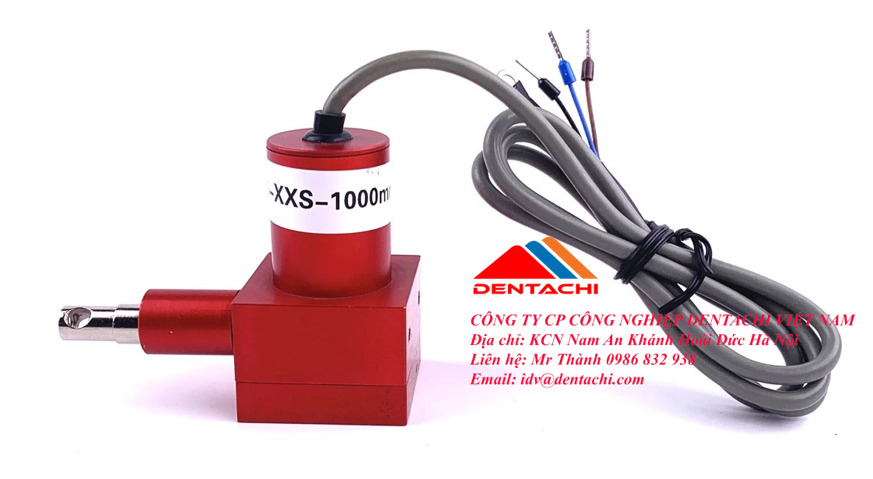

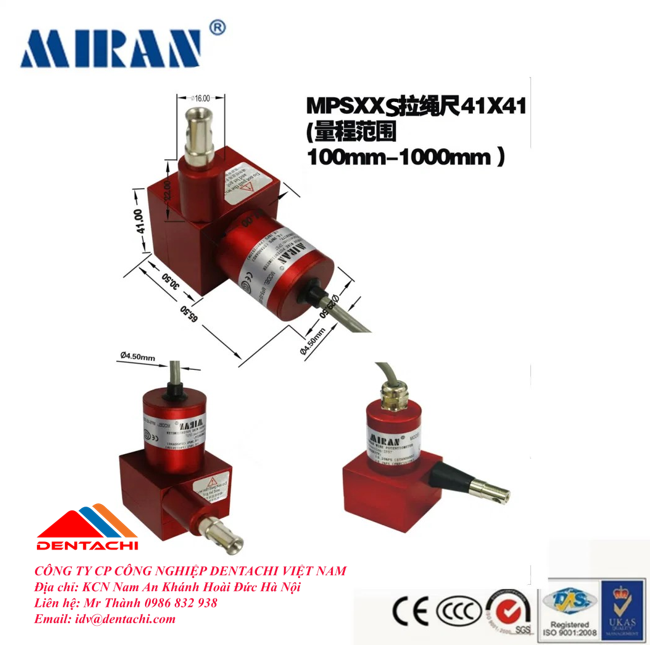

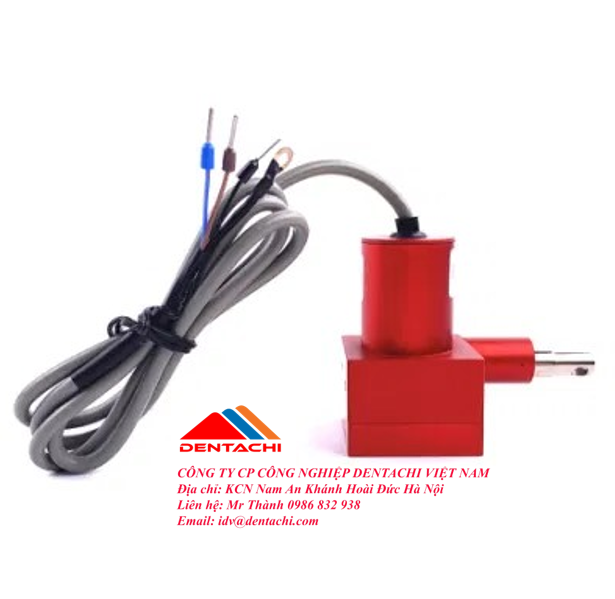

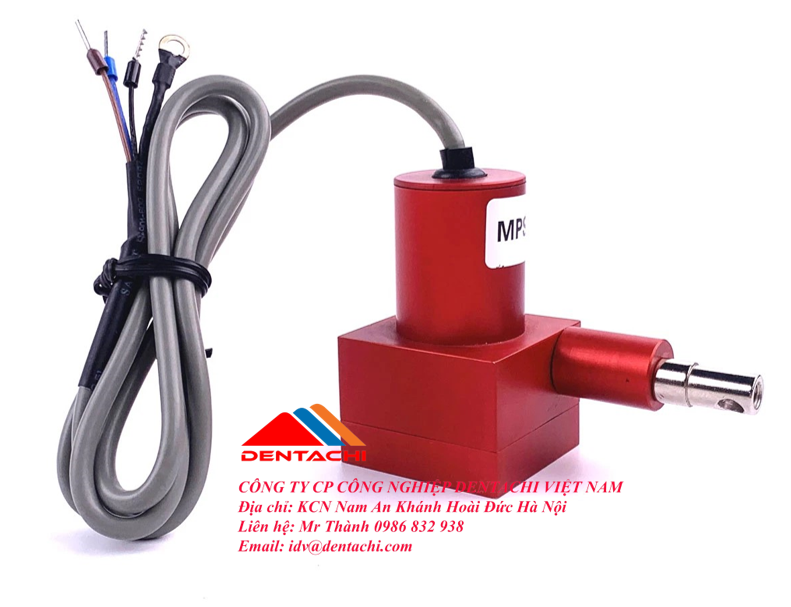

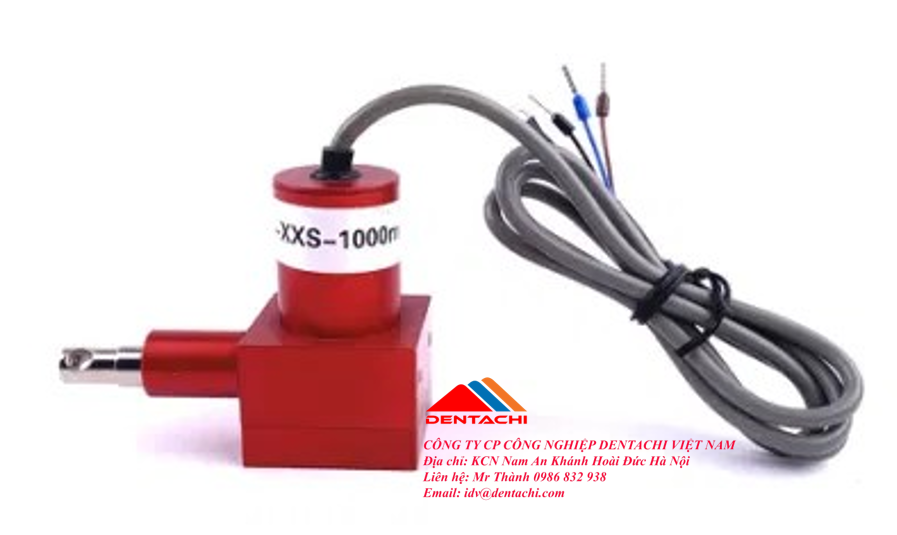

Miran Mps-Xxs-R 100-800mm

Miran Draw Wire Potentiometer MPS type is widely used in storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control.

XXXS:100-200mm
XXS:100-800mm
XS:100-1000mm
S:100-1250mm
M:1100-4000mm
L:4500-8000mm
XL:9000-100000mm

There are 6 kinds of output as below,please choose the one you need.
R: 0-5KΩ Resistance
V1:0-5V
V2:0-10V
A1:4-20mA with 3 wires
A2:4-20mA with 2 wires
P:incremental pulse phase output AB phase or ABZ phase.

Stroke Length(mm)	(100mm~1000mm)
Output Signal	Resistance (Potentiometer)
Linearity	± 0.3%FS(normal standard); ± 0.1%FS(precision)
Repeatability	± 0.02%FS
Resolution	Essentially Infinite
Wire Measurement	Diameter 0.7mm SUS304 with fluorin-coated,Breaking load at 16kg
Sensor Type	Wire-Winding potentiometer
Starting Force	≤600g
Max Measuring Speed (back and forth)	500mm/sec
Weight	≤600g
Mechanic Specifications of Resistance Wire sensor:
Input Resistance	5ΚΩ ± 10%FS(normal); ±5%FS(precision)
Rated Power (Watts)	1W at 70ºC(500mm); 2W at 70ºC(1000mm)
Recommended Input Voltage	12-24VDC
Enviroment Specifications of Resistance Wire sensor:
Working Temperature	0ºC~+70ºC
Storage Temperature	-20ºC~+80ºC
Vibration	10Hz to 2000Hz
Ingress Protection	IP65

Applications: storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control.

Type:	Linear Wire Position Sensor
Output Signal Type:	Analog Type
Movement:	Linear Displacement
Production Process:	Injection
Material:	Aluminum Case
Accuracy Grade:	≤0.3%Fs
