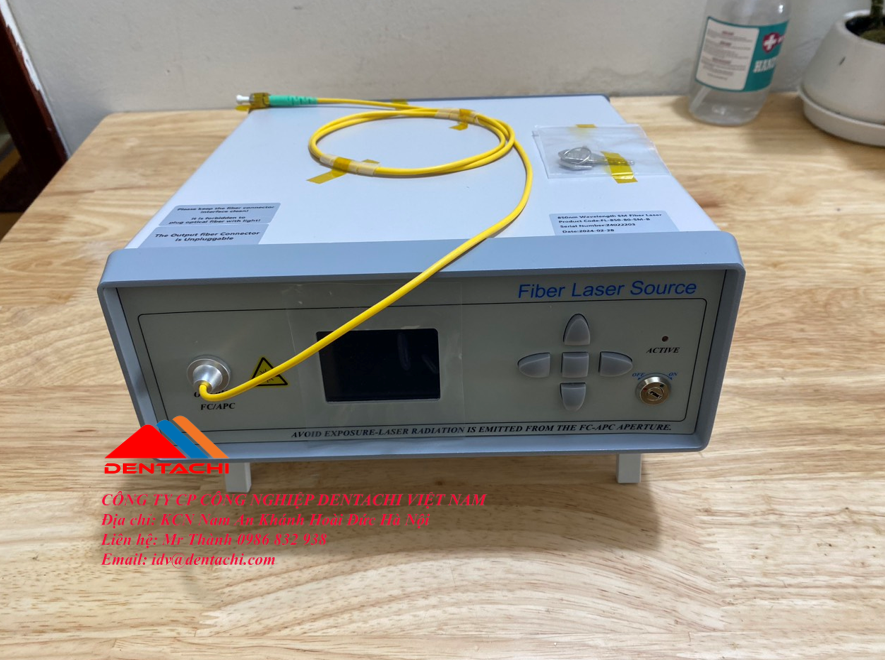

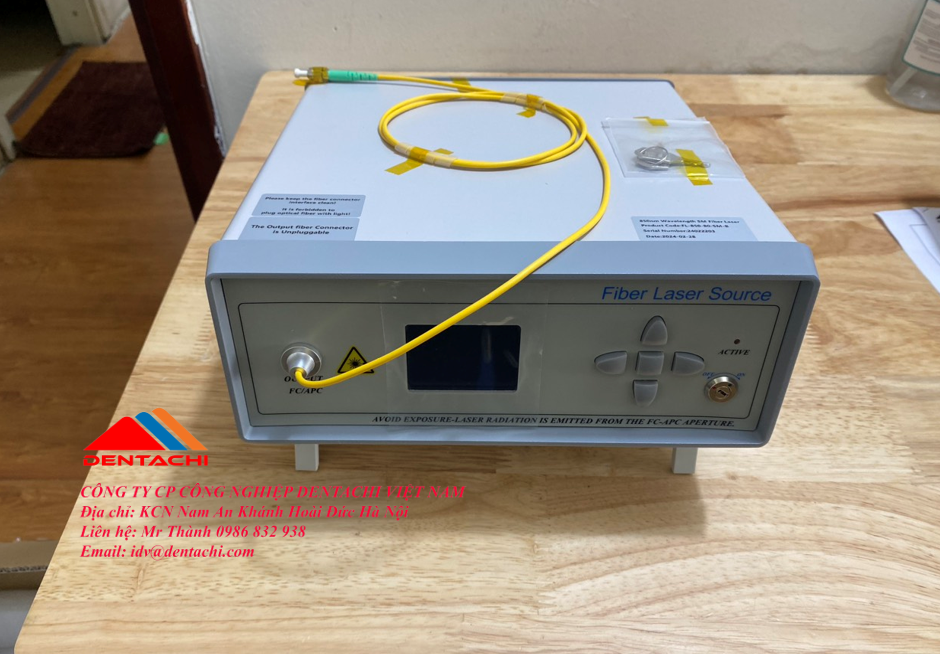

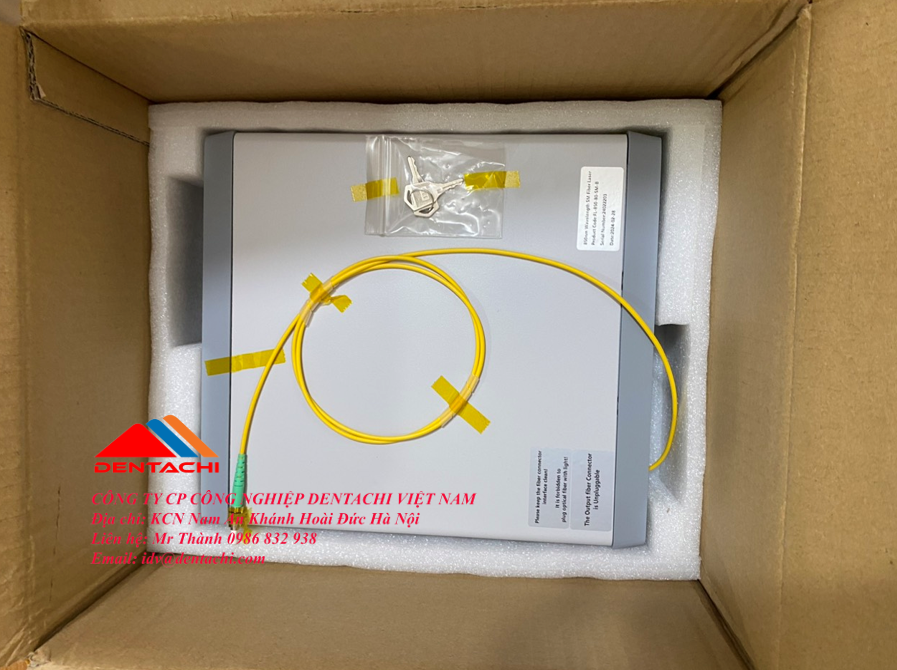

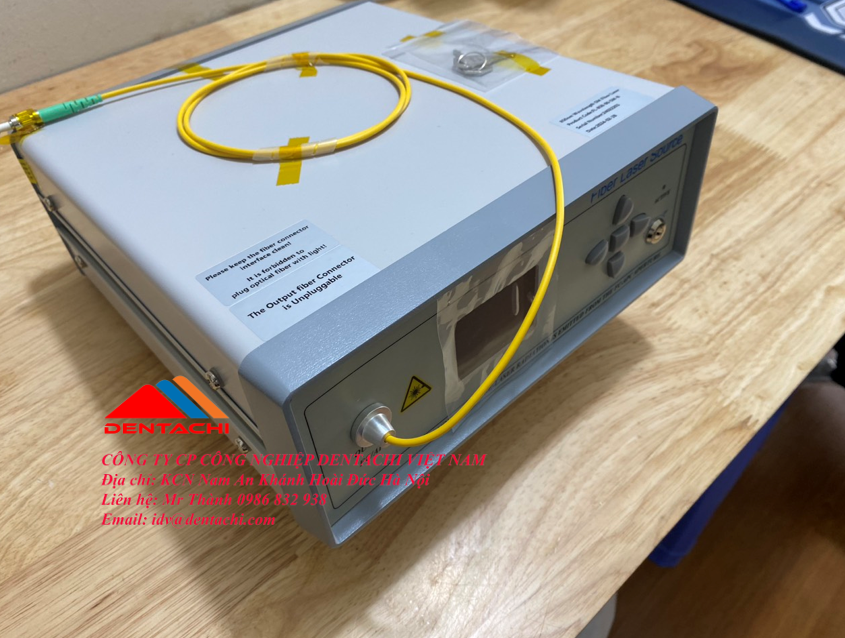

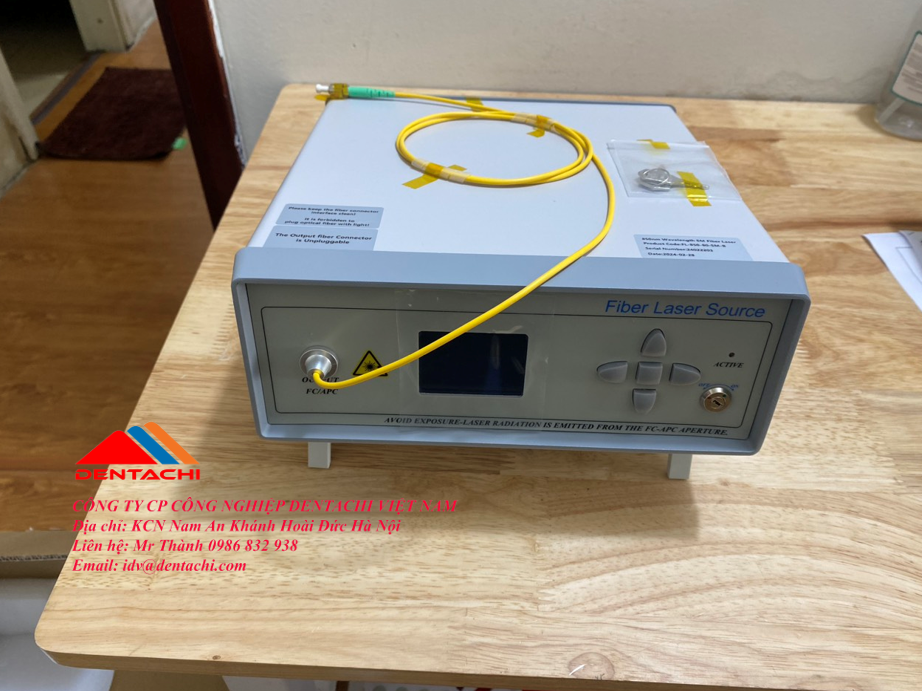

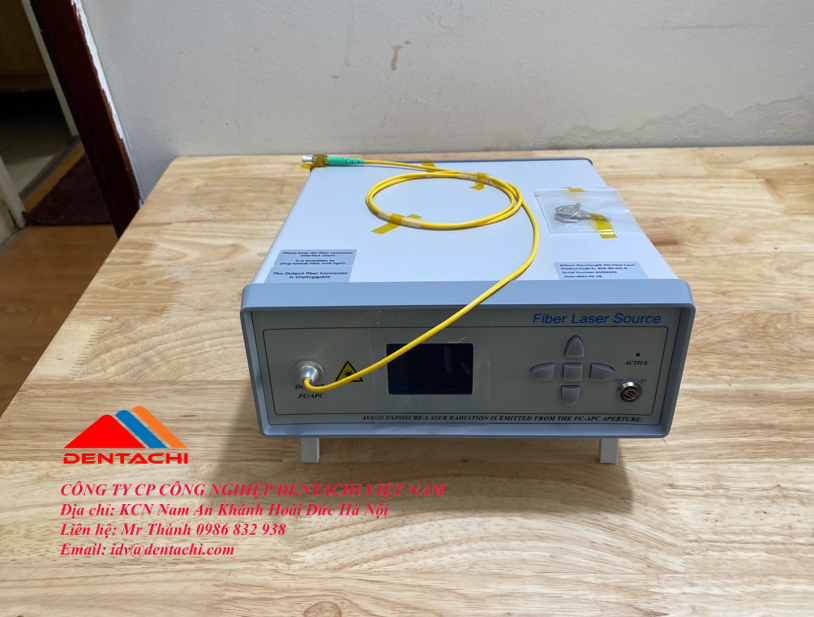

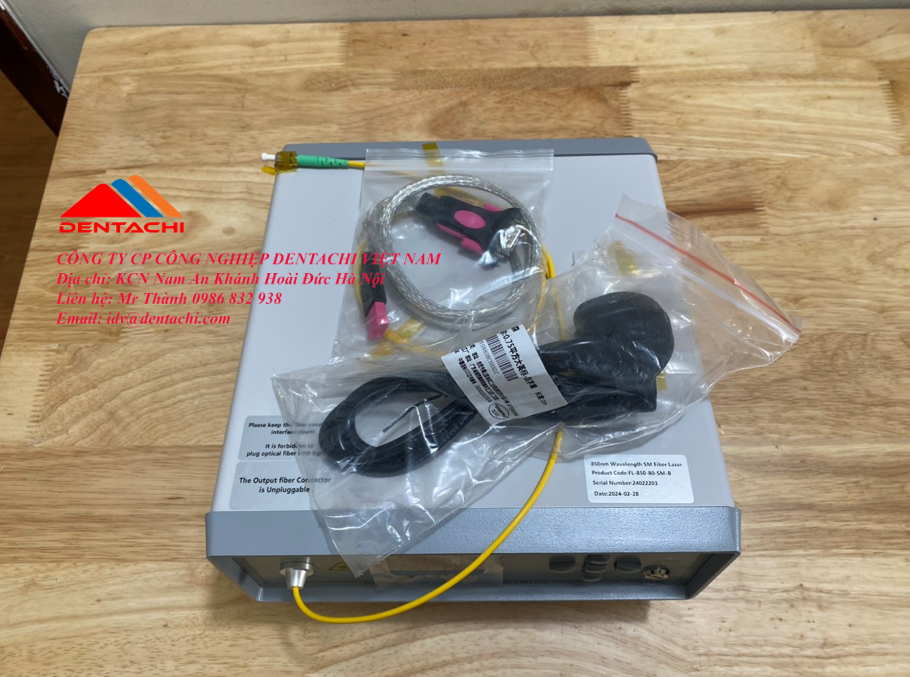

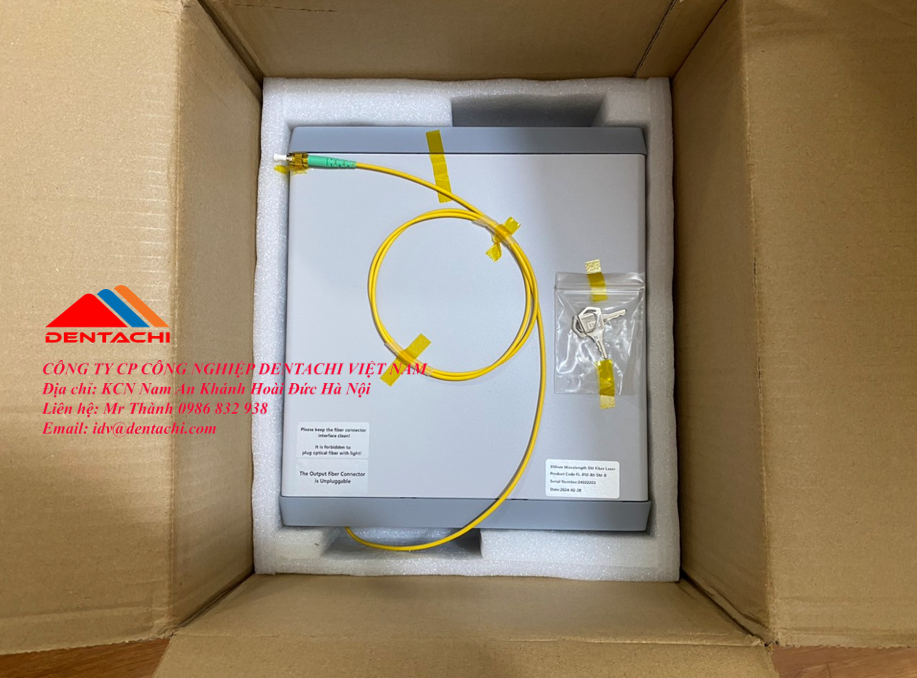

IR Laser Source 850nm 80mW SM Fiber Coupled Laser Desktop Type FL-850-80-SM-B

This laser adopts semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser, stable output power and spectrum, and excellent spot quality (TEM00 mode).

[Features]
1. Excellent spot quality
2. Spectral and power stability
3. Module or desktop package

[Applications]
1. Light spot indication
2. Imaging
3. Device testing

[Specifications]

Parameters	Unit	Typical value	Remarks
Model	--	FL-850-80-SM-B
Working Wavelength	nm	850
Wavelength Accuracy	nm	±5
Working Mode	--	CW	Continuous light
Output Power	mW	80	Customizable
Power Adjustment Range	--	10~100%
Short-term Stability (15 minutes)	dB	≤ ±0.02	Equivalent≤±0.5%
Long-term Stability (8 hours)	dB	≤ ±0.05	Equivalent≤±1.2%

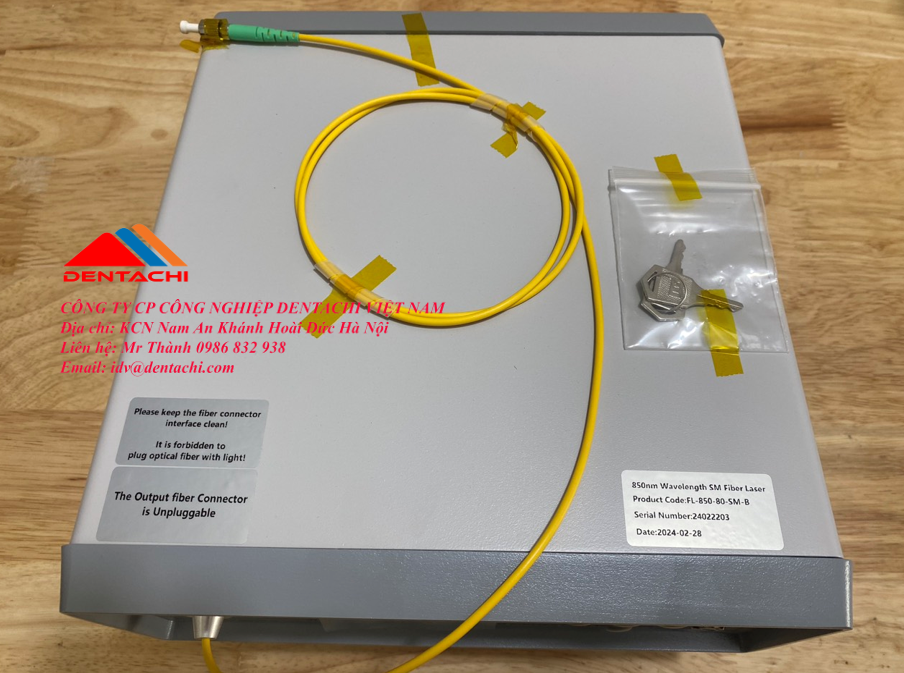

Pigtail Type	--	Corning 780HP SM fiber	L=1m
Pigtail Connector Type	--	FC/APC

Electrical and Environmental Parameters	Desktop Type (Current product)	Module Type
Control Method	Button	RS232 serial communication

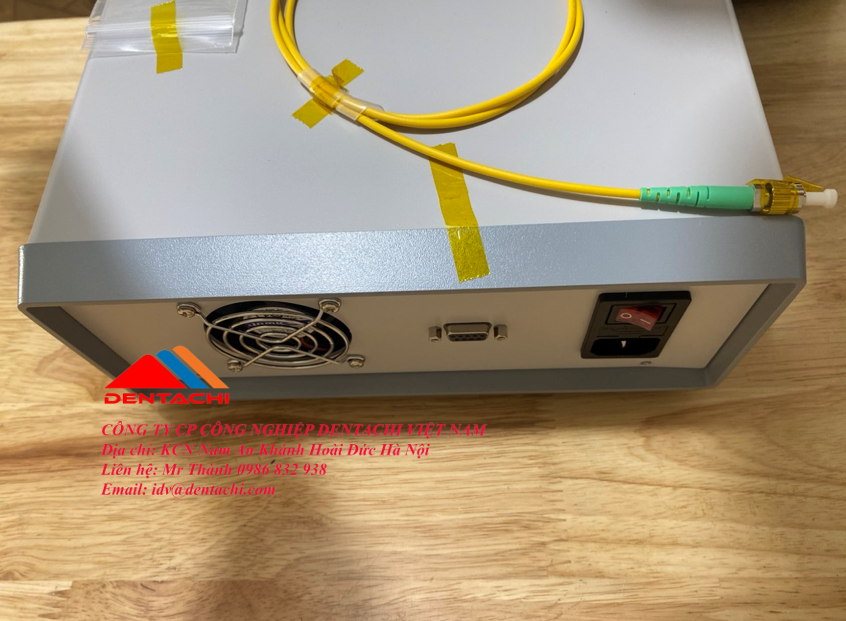

Communication Interface	DB9 Female (Default not include)	DB9 Female
Power Supply	AC 100~240V	DC 5V, 3A
Size	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating Temperature Range	-5~+35°C
Operating Humidity Range	0~70%
