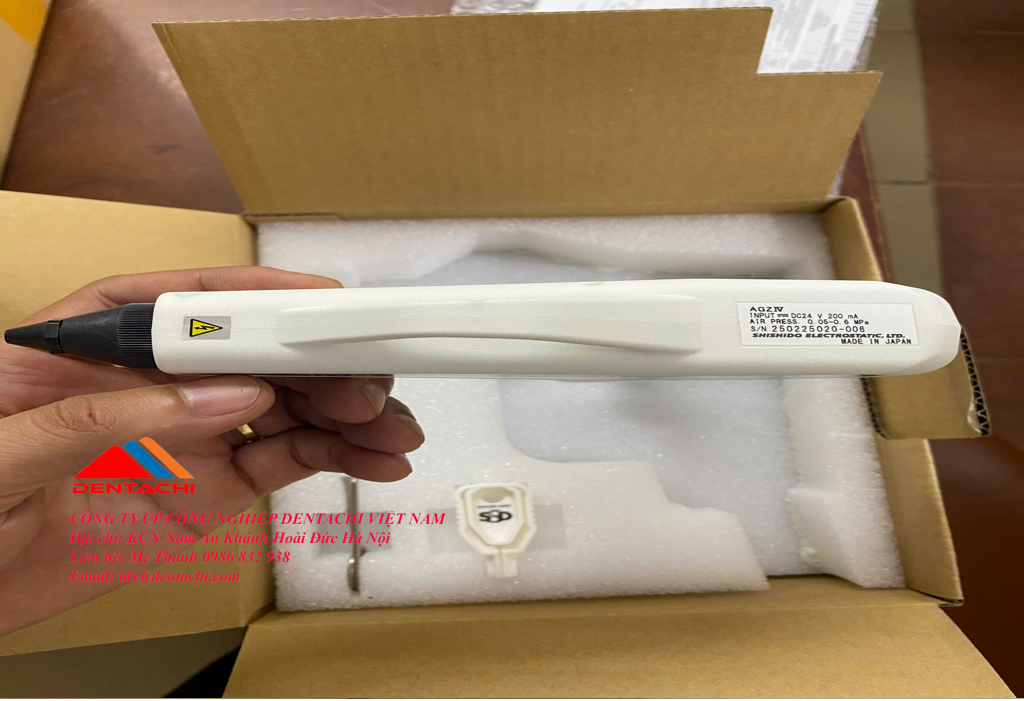

ION BLOW GUN AGZ IV SHISHIDO

Turn on the switch for linking with the LED light, when operating the handle opened or closed, the LED light will be on/off too.

(Note 1)：When switch No.1 is not ON, the switching operation of switch No.2 is invalid.
(Note 2)：When switch No.3 is not ON, the switching operation of switch No.4 is also invalid.
※The frequency of intermittent air supply is 5Hz at low speed and 10Hz at high speed.
※All switches are OFF when shipped from the factory.

【Delay function】
When switch No. 4 is turned on, the lighting LED light will continue for 5 seconds after the switch is turned off (delay function). Without air supply, high-brightness lighting can also be used to confirm the location of dust.

Decay Performance

(Note 1)：□Test by CPM with 150x150mm plate(20pF).
(Note 2)：Decay time ±1000V→±100V.
(Note 3)：The above data are measured valve, not for guaranteed.

Flow data

(Note 1)：The above data are measured valve, not for guaranteed.
(Note 2)：The tube between the main body and the pressure gauge is 50 mm long.

Specification

Model	AGZⅣ
Input Voltage	DC 24V (AC adapter supplied; compatible with AC 100V to 240V)
Capacity	2.4VA
Output Voltage	AC2,500V (3pF,100MΩ)
Fluid type	Clean-dry Air
Supply air range	0.05～0.6 MPa
Air Pressure	Max 400ℓ/min(ANR)（0.6MPa）
Dimension	168.5x33x168.5mm(L×W×H) Exc. protrusions
Weight	Approx. 310g（Main body only）
Operating Temperature	0～40℃
Operating Humidity	Under 65%RH（no condensation）
Air tube size	Outer Diameter Φ6
Ion Balance	under ±10V
LED indicator	LED indicator lights green when power is on(but the lever is OFF) LED indicator lights blue when high pressure is normal (lever ON) LED indicator lights red when high pressure is abnormal
Ozon Level	Under 0.04ppm (Distance 200mm)
Material	Main Body : PBT / Nozzle : PPS

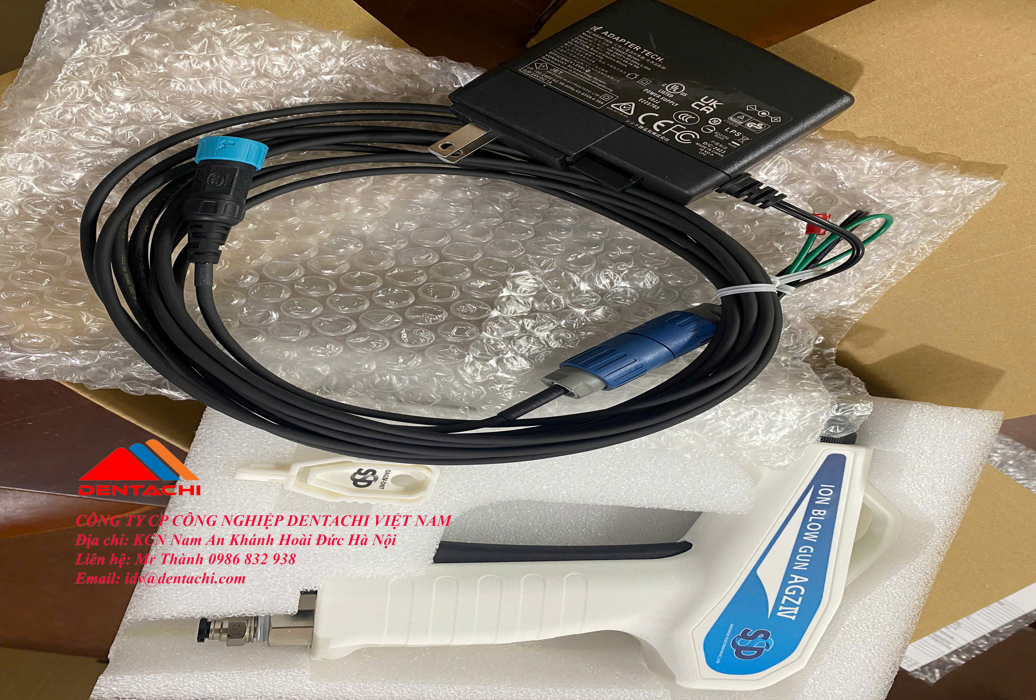

Accessories	AC adaptor connection cable / AC adapter with US plug, or UK plug, or EU plug / AC cord / Hanging hook (SUS) / Discharge needle installation tool / Manual
