HOCHIKI SOC-24VN + NS4-100

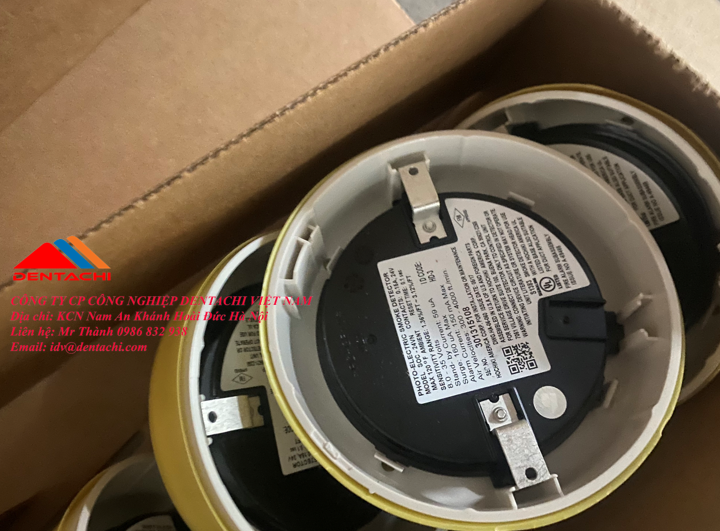

– SOC-24VN is a new generation smart optical smoke detector with the most advanced technology used for zone fire alarm centers. Stable operation, more reliable, anti-fake alarm due to long-term dirt build-up.
– Allows operation in high wind speed environments, up to 4000fpm.
– Led displays 3 states: power indicator, sensitivity threshold indicator, fire alarm.
– Anti-RF interference, high durability.
– Power supply: 8-35VDC
– Standby current 59uA/24VDC.
– Fire alarm current MAX 180mA.
– Working temperature: -0°C ~ 49°C.
– Sensitivity according to UL standards.
– Material: Fireproof plastic.
– Dimensions: Diameter 102 x Height 48.
- White.

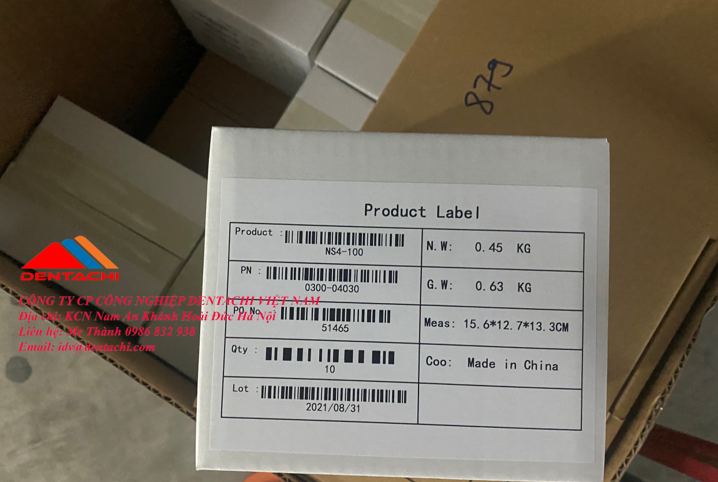

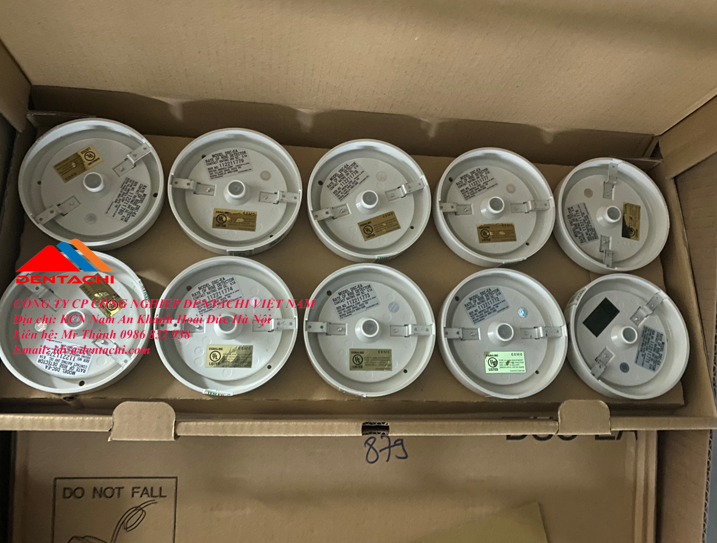

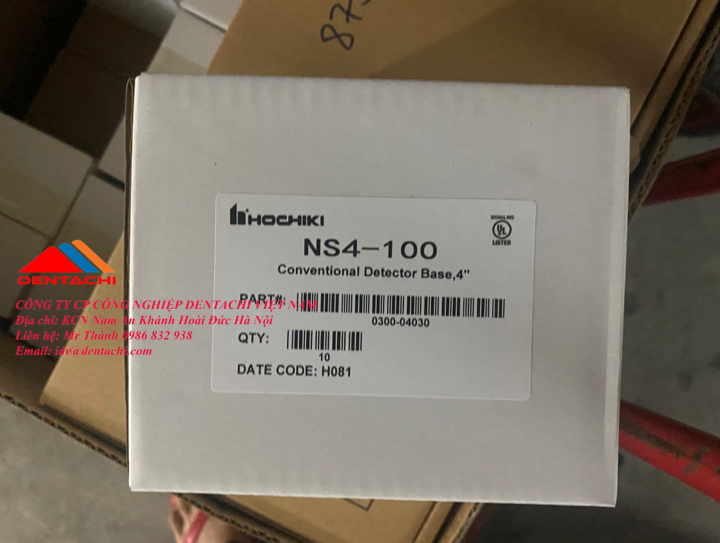

The NS4-100 Heat Detector Base is specifically designed for use with the Analog models NS Hochiki AIE-EA Sensor Smoke Detector, ALG-V Sensor Smoke Detector and ATG-EA Heat Sensor.
– YBN-NSA-4 4 inches
– HSB-NSA-6 6 inches
– Security Feature Plastic Tamper-Lock
– Color Bone PC / ABS Blend
