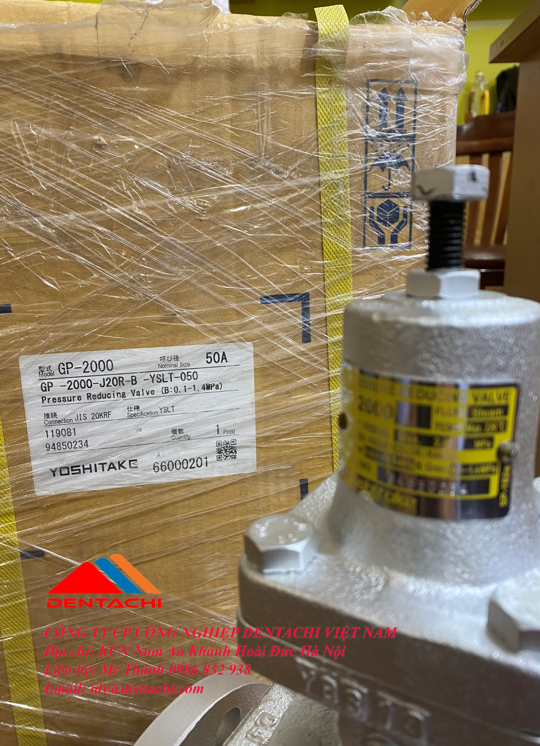

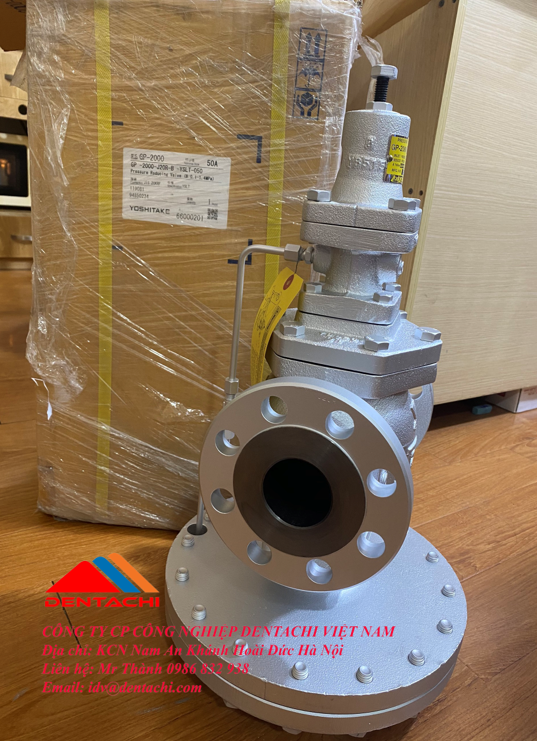

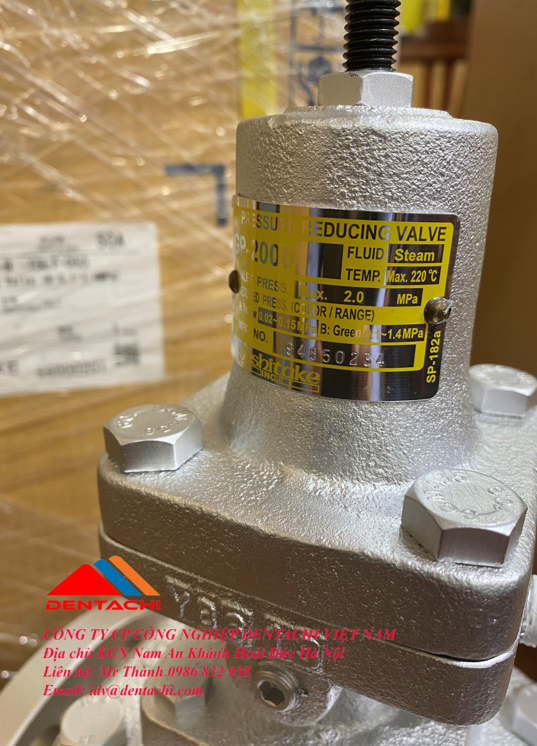

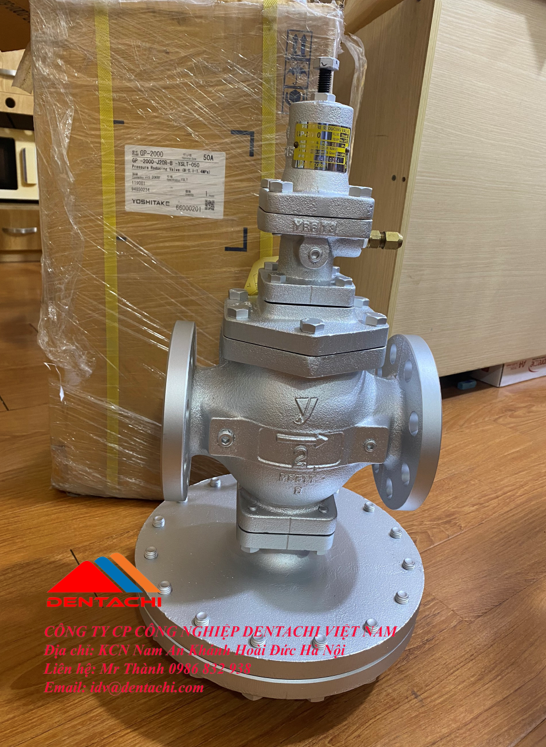

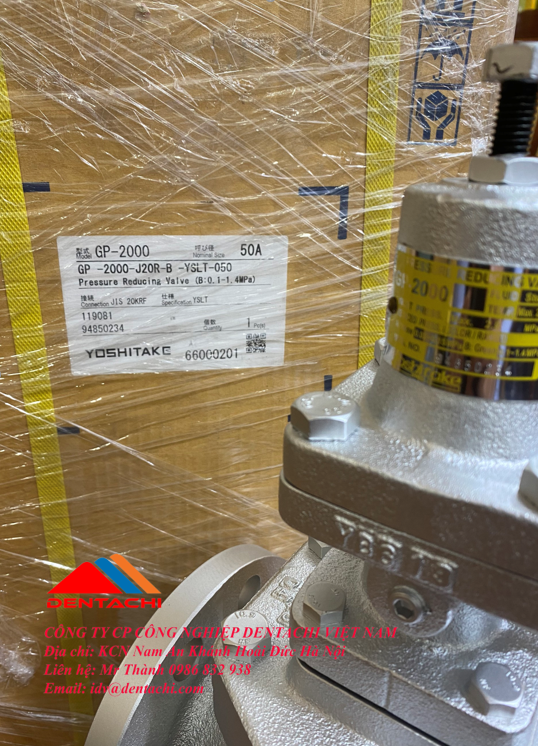

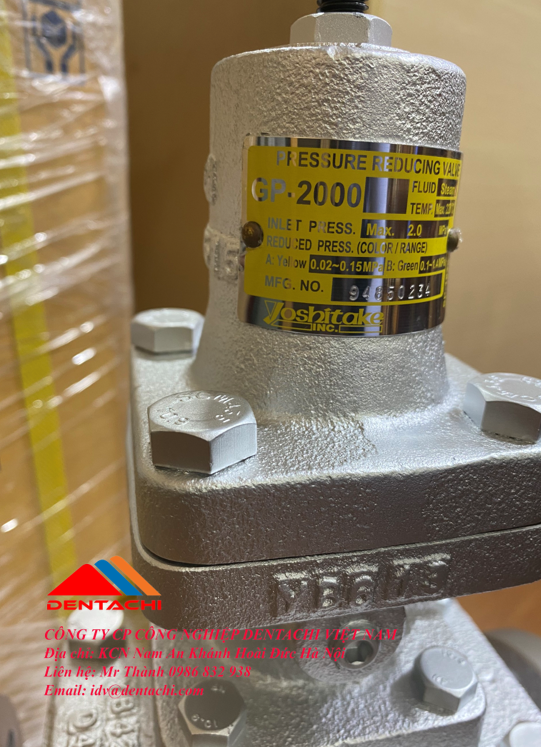

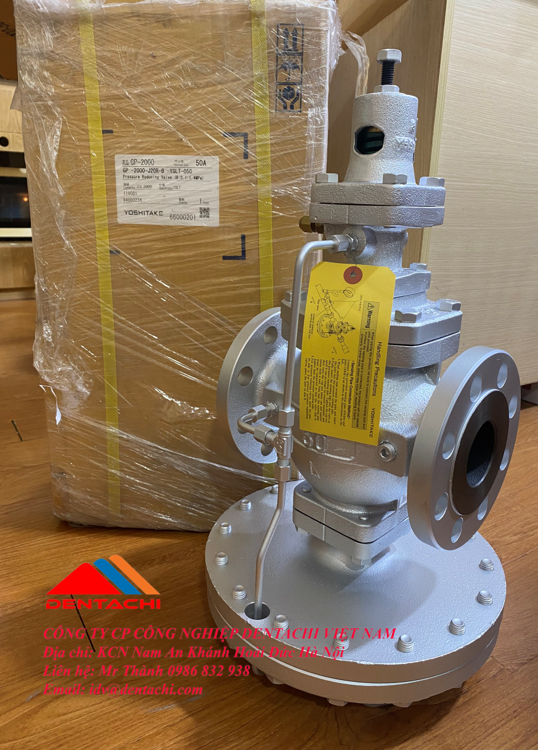

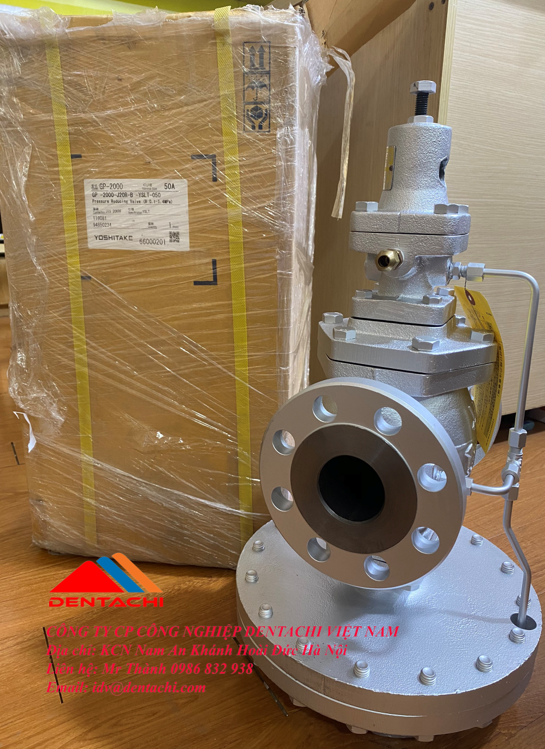

GP-2000 Pressure Reducing Valve/Drain Separator

Pressure Reducing Valve/Drain Separator

GP-2000

* Accurate control
* Valve leakage meets ANSI Class IV
* High reduction ratio (20:1)

Features		For steam, large capacity, great accuracy
Type		Pilot operated diaphragm type
Specifications	Product type	Pilot-operated type
	Nominal size	15A (1/2") - 200A (8")
	Application	Steam
	End connection	JIS Rc or NPT screwed,JIS 20K RF flanged,JIS 10K FF flanged, ASME Class 150 or 300 flanged
	Inlet pressure	0.1 - 2 MPa (0.1 - 1.0 MPa for JIS 10K)
	Reduced pressure	0.02 - 1.7 MPa (*)
	Max. temperature	220 degree(C)
	Reduced pressure	85% or less of the inlet pressure(gauge pressure)
	Min. differential pressure	0.05 MPa
	Max. pressure reduction ratio	20 : 1
	Working temperature	Max. 220 degree(C)
	Valve seat leakage	0.01% or less of rated flow
Material	Body	Ductile cast iron
	Main valve, valve seat	Stainless steel
	Pilot valve, pilot valve seat	Stainless steel
	Diaphragm	Stainless steel
