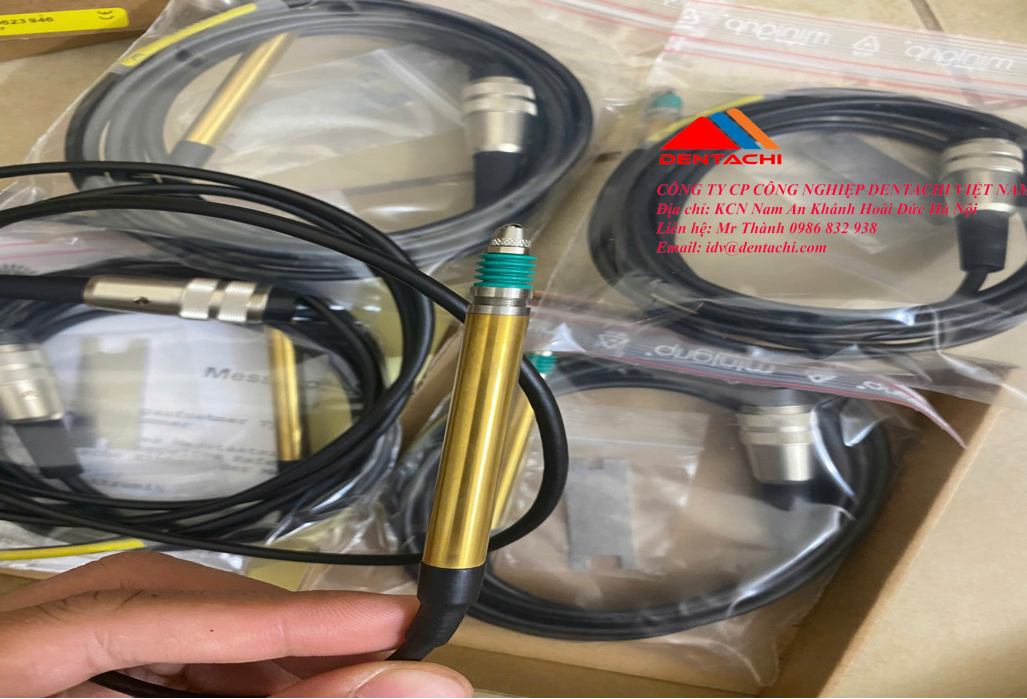

Fullbridge T161F Peterhirt
Fullbridge T161F Peterhirt
Total Stroke
4.6 mm
Measuring stroke
± 1.0 mm
Pretravel
adjustable
Pretravel default setting
- 1.2 mm
Bearing
Ball bearing, no side-play
Lifetime
> 10 Mio. Cycles
Tip rotation
1° over full stroke
Temperatur range
-10 to +65 °C, storage and operation
Mounting position
any
Tip
Ø 3.0 mm tungsten carbide ball, M2.5 fixing thread, exchangeable
Bellow
FPM
Body diameter
Ø 8h6

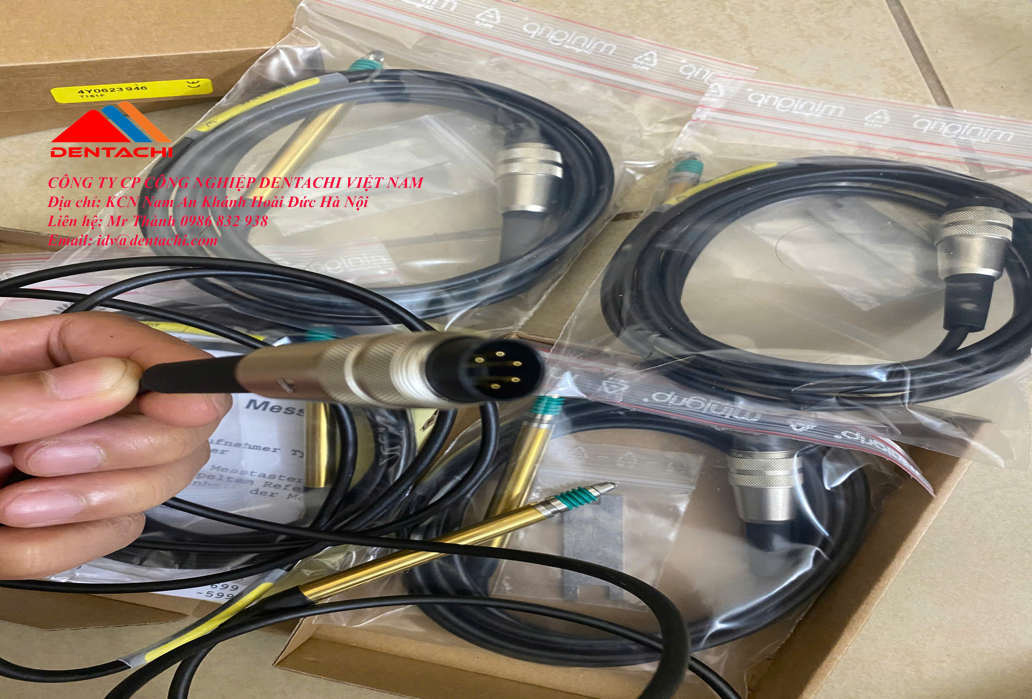

Plug
M16x0.75, 5-pin, DIN45322

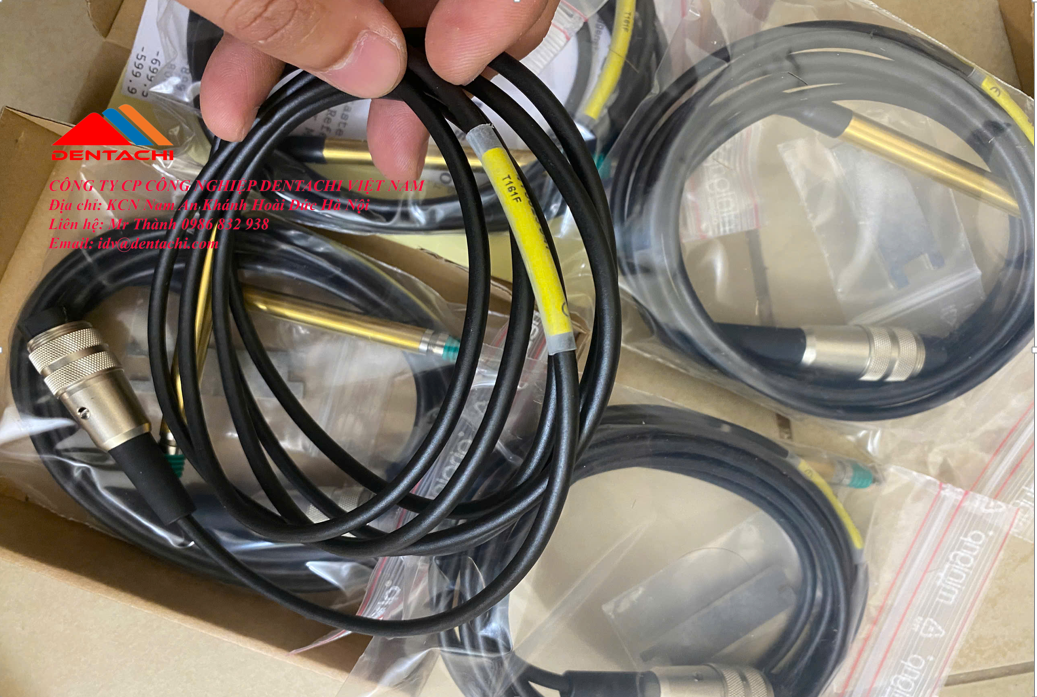

Cable feature
PUR shielded, length 2 m
Cable information
Outer- Ø 4.0 mm, drag chain compatible
