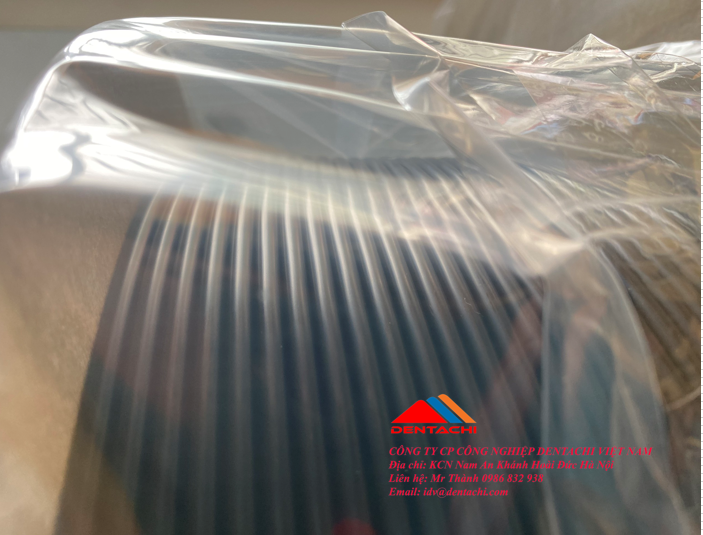

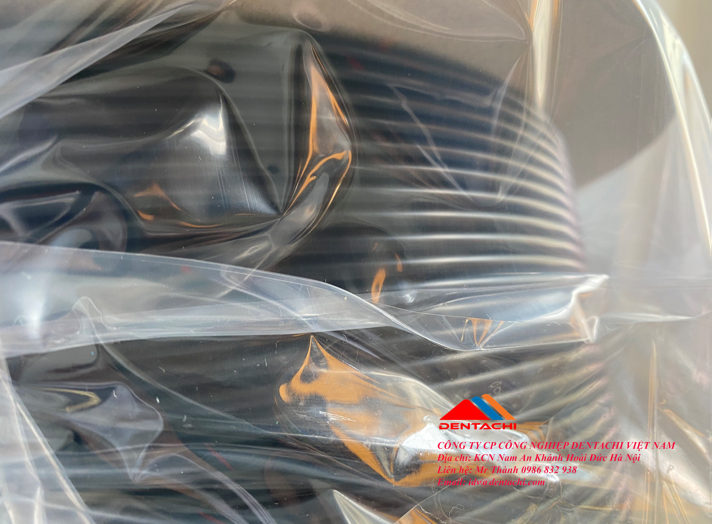

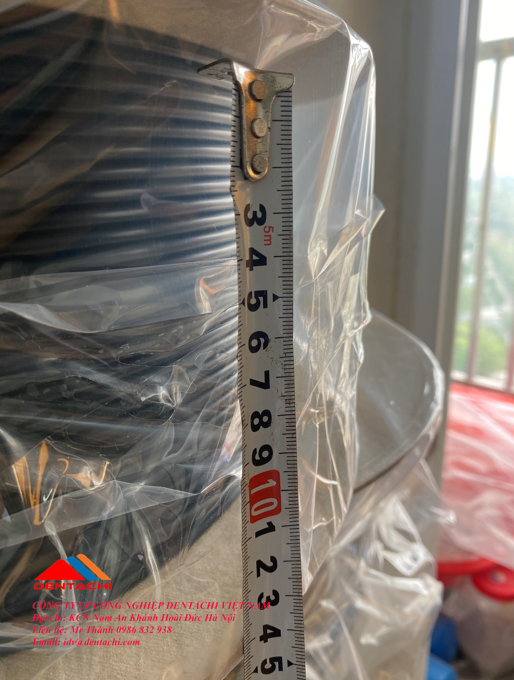

Live roller drive belt
Antistatic, Elastic, Flexibility in all directions, Monolithic Belt, Simple and fast joining method
Product Construction / Design Product characteristics Antistatically equipped Yes Food suitability, EU conformance No Food suitability, FDA conformance No Technical data Hardness 90 ShA Min. operating temperature admissible (continuous) -10 °C 14 °F Max. operating temperature admissible (continuous) 50 °C 122 °F Joining related properties Joining method Quickmelt Master joining method for standard applications Link to JDS: Joining method Quickmelt Pulley diameter (minimum) mm inch 50 1.97

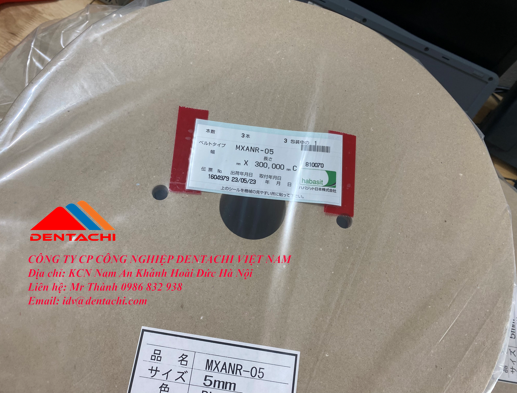

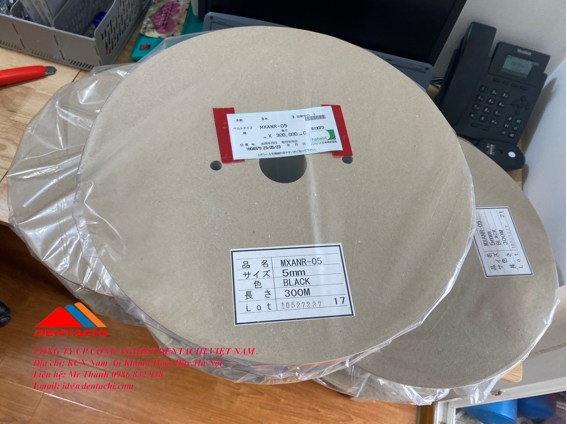

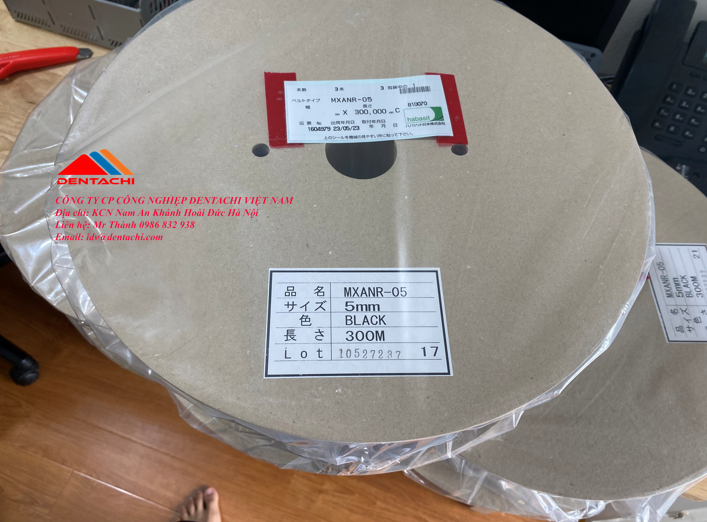

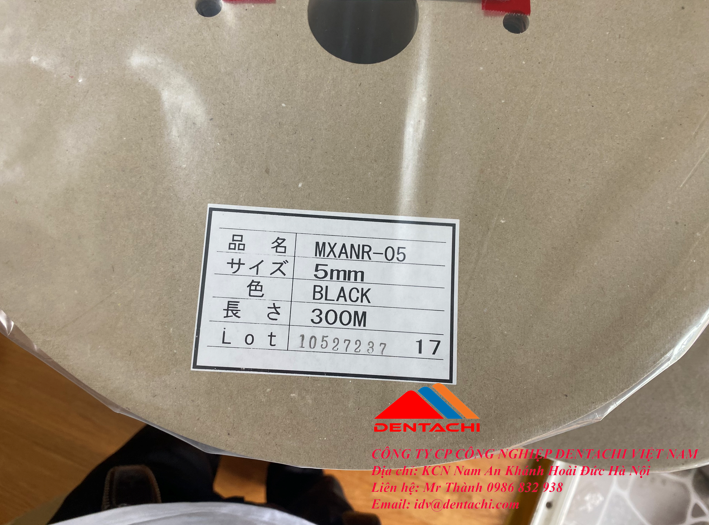

All data are approximate values under standard climatic conditions: 23°C/73°F, 50% relative humidity (DIN 50005/ISO 554). Limited representative testing based on a standard configuration is carried out to estimate minimum pulley diameters. Please contact Habasit for specific guidance regarding non-standard applications, including, but not exclusively, when profiles or cleats are used, or if the belt working temperature is close to the limits listed in this document. Chemical resistance Link to 'Chemical resistance information': https://rims.habasit.com Recommendation For details consult 'Storage and handling requirements for belts and machine tapes' or contact Habasit, Protect belts from sunlight/UV-radiation/dust and dirt. Store spare belts in a cool and dry place and if possible in their original packaging. Group V-T Belts Sub-Group MXANR Round Belts Item number H800036340 Extruded Belts MXANR-05
